MULTI-FUNCTION CABLE TRACKER

Designed for precise location and continuity testing of wires in electrical and telecommunications installations without damaging the insulation.

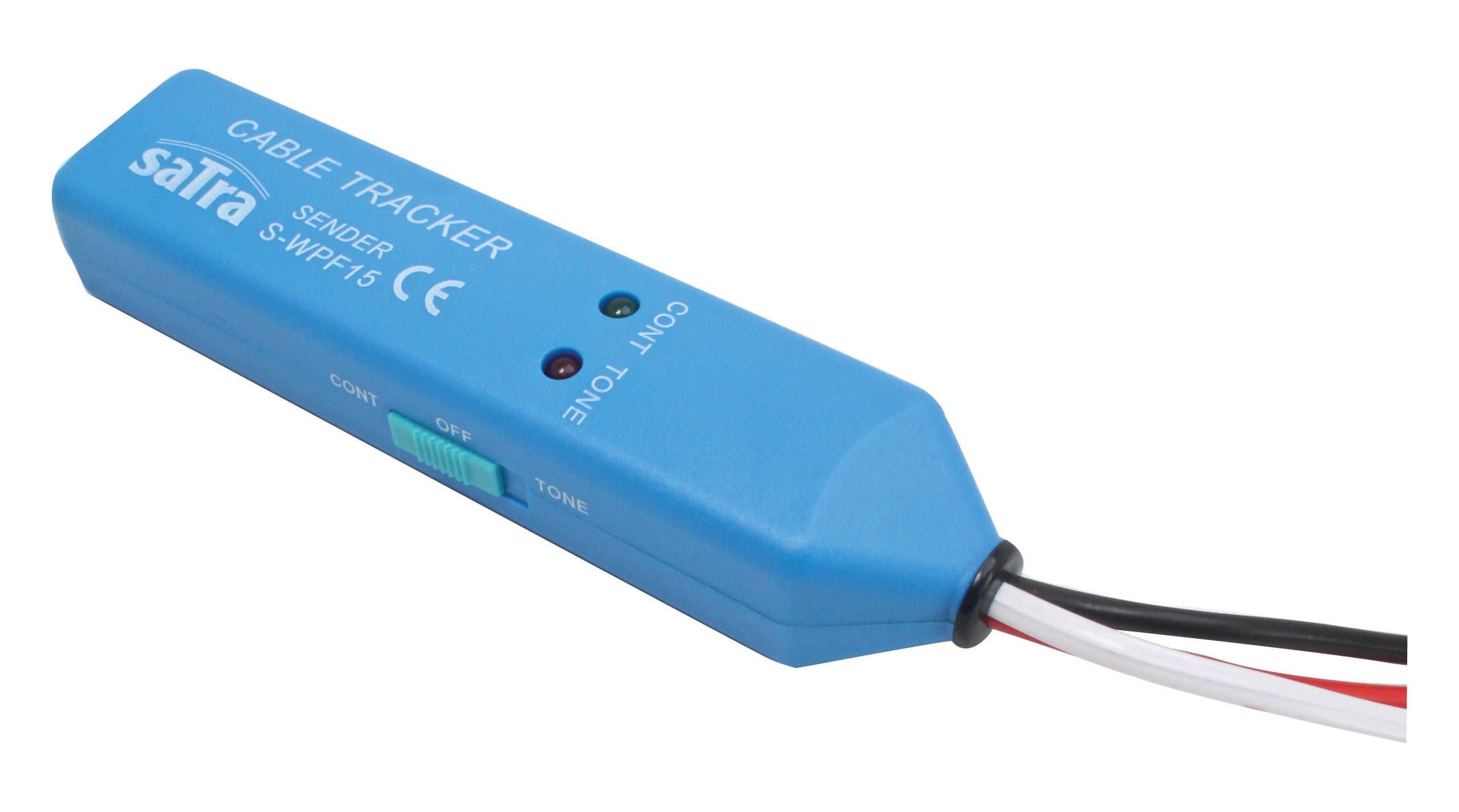

The transmitter sends a signal that the receiver detects on the corresponding wire pair, facilitating identification and troubleshooting of wiring issues.

Applications:

• Locating breaks in electrical or telecommunication wires
• Pinpointing the exact location of cable faults
• Detecting ringing signals on telephone lines
• Verifying the operational state of telephone lines
• Sending an identification signal to isolate a specific wire among multiple conductors



Features:

• High sensitivity allows operation on multi-pair cables, supporting up to 100 pairs

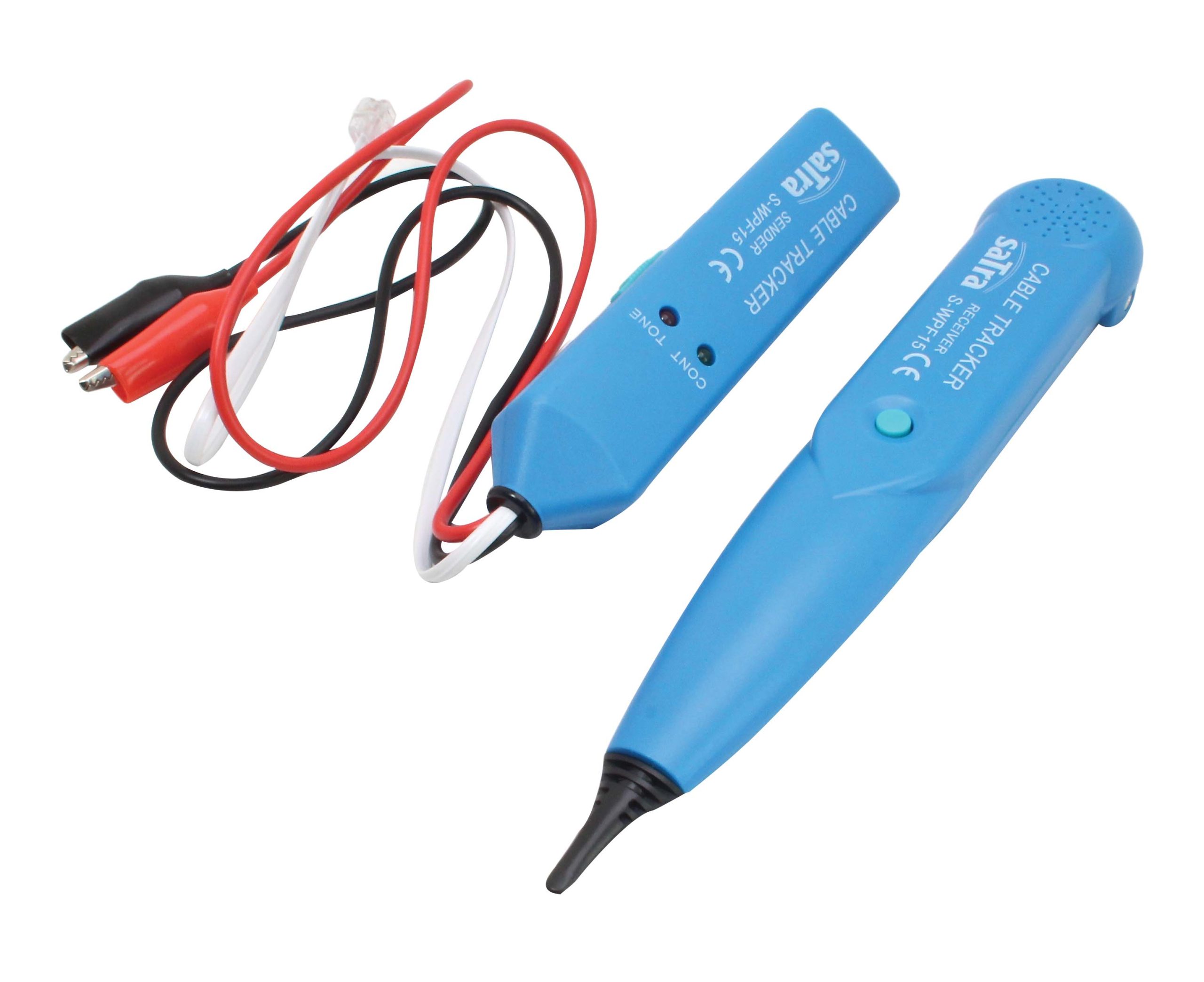

• Connects to wiring via RJ-11 connectors or alligator clips

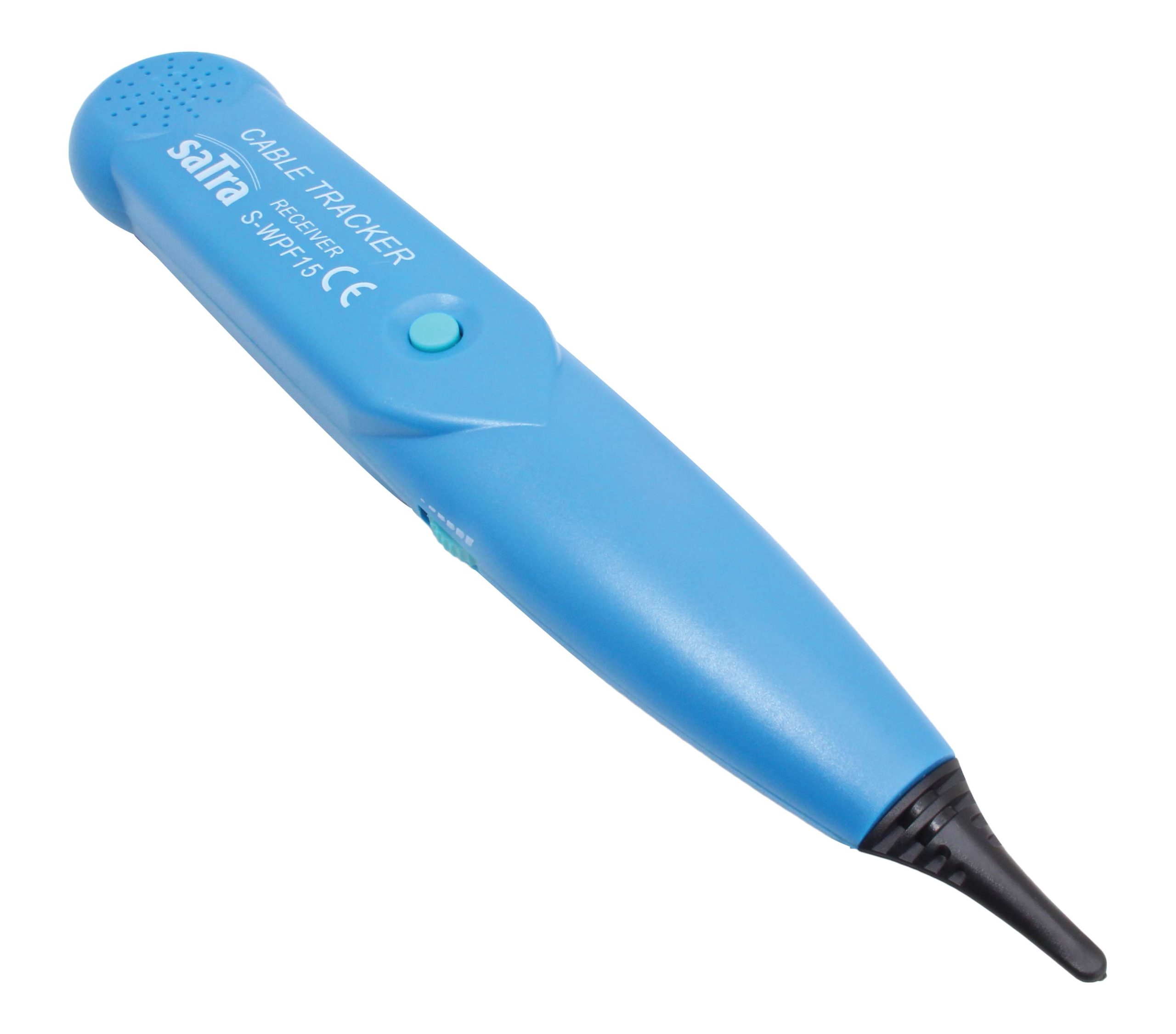

• Receiver equipped with audible tone indication and adjustable volume control
• Headset support via integrated mini-jack port on the receiver



Technical Specifications:

• Receiver signal frequency: 100 – 300 kHz
• Transmitter signal frequency: 1.5 kHz
• Transmitter dimensions: 145 × 35 × 25 mm
• Receiver dimensions: 238 × 43 × 26 mm
• Transmitter weight: 114 g (with battery)
• Receiver weight: 106 g (with battery)
• Power supply: 2 × 9V batteries – batteries not included
