S-ABJ3
3 TON AIR BAG JACK

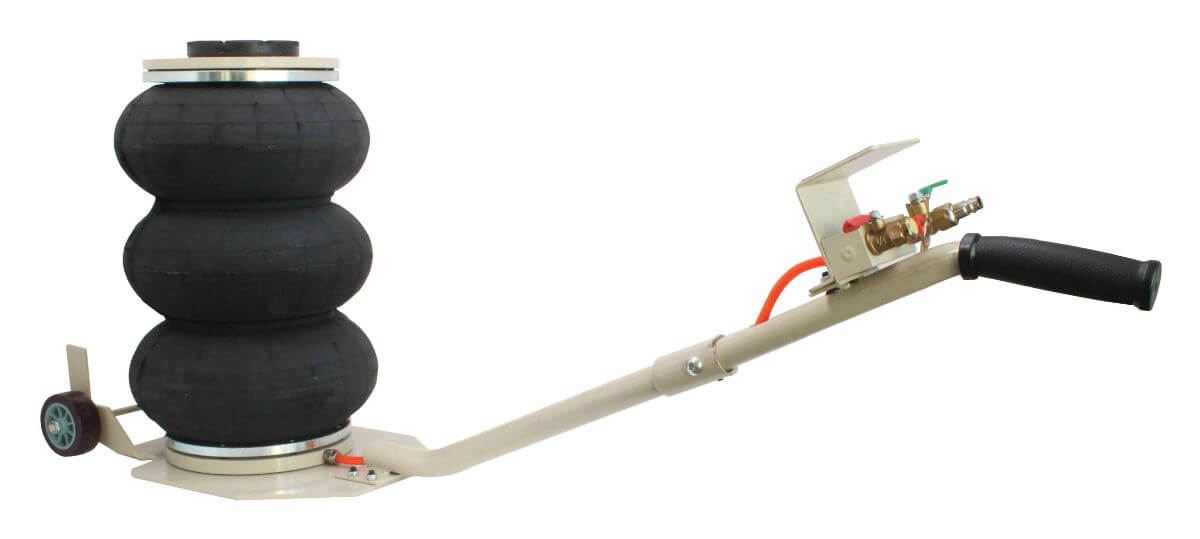

SATRA S-ABJ3 pneumatic bellows lift for single point lifting for vulcanization workshops for lifting vehicles up to 3.0T. Pneumatic

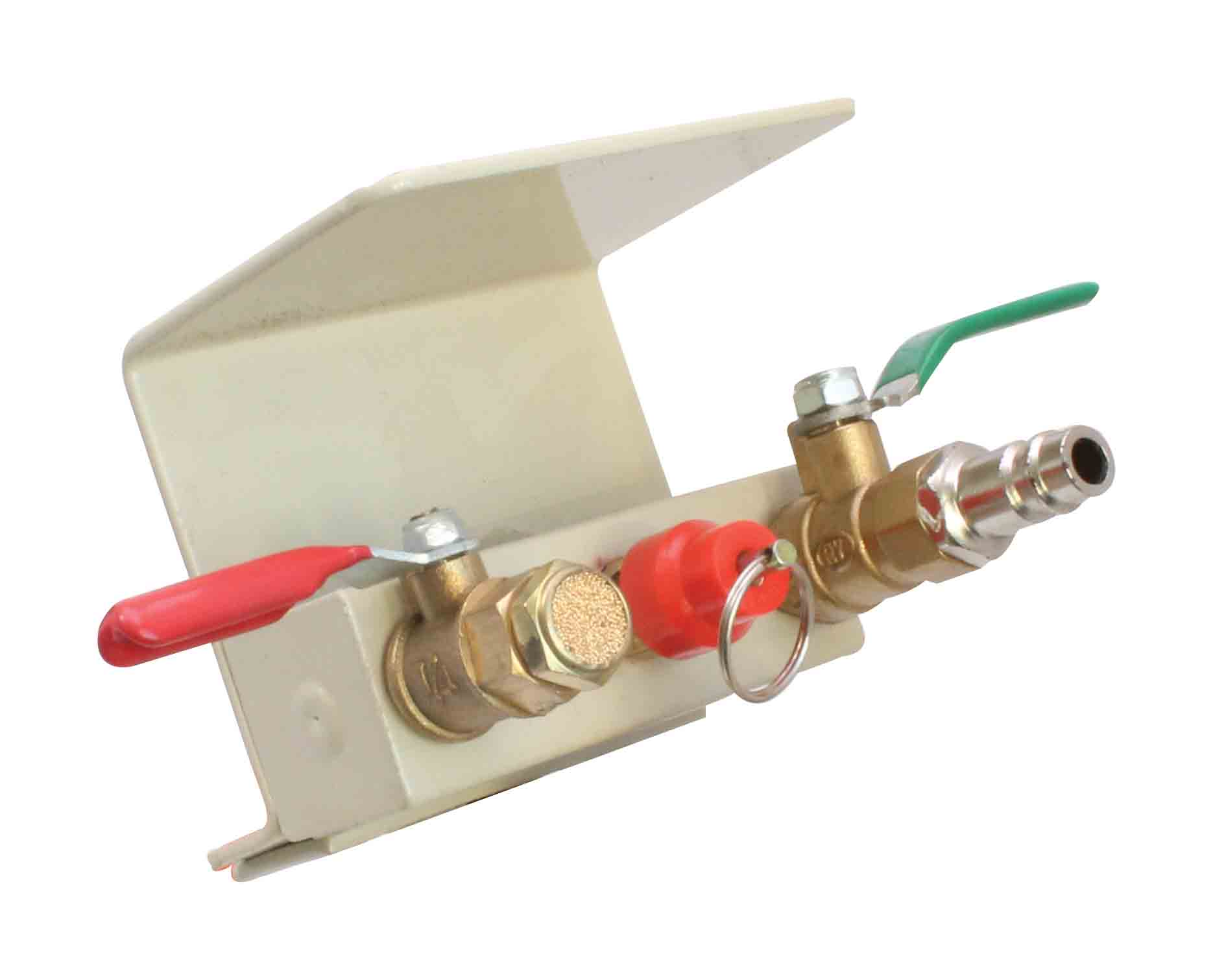

bellows lift S-ABJ3 is used for point lifting of the vehicle in the place indicated by the manufacturer. Two control valves, inlet and
outlet, making control very easy. After disconnecting the compressed air supply, there is no risk of the raised vehicle dropping
down automatically. Properly profiled handle, two wheels and stands to position the elevator for easier storage. The lift bellows
are made of reinforced rubber, and the guide sleeves ensure stability of the structure during lifting. In addition, a rubber separator
prevents the load being moved.
Technical information:
Maximum load: 3000kg Min.
Lifting height: 145mm
Maximum lifting height: 400mm
Rubber cushion diameter: 270mm
Working pressure: 6 – 12ba
