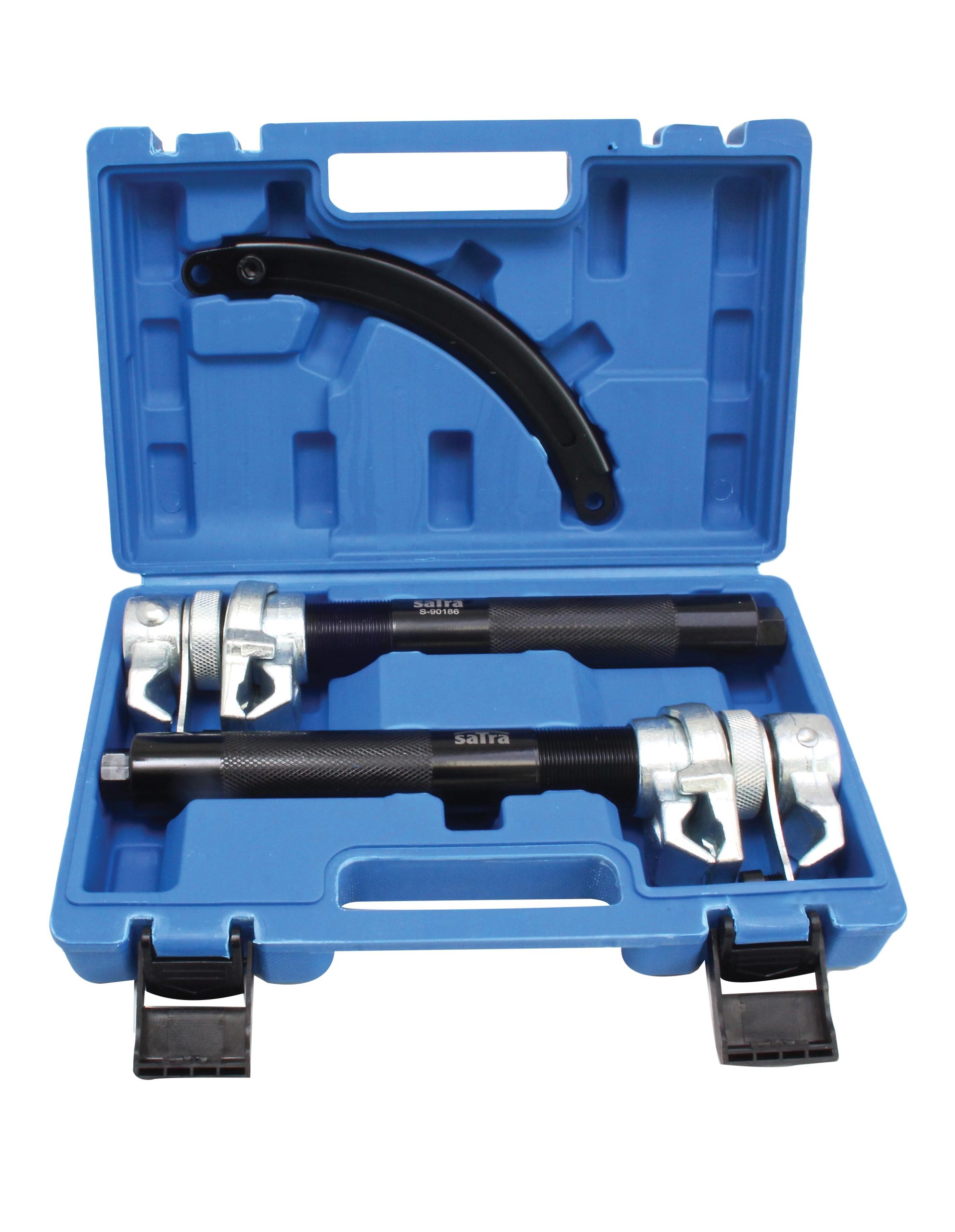

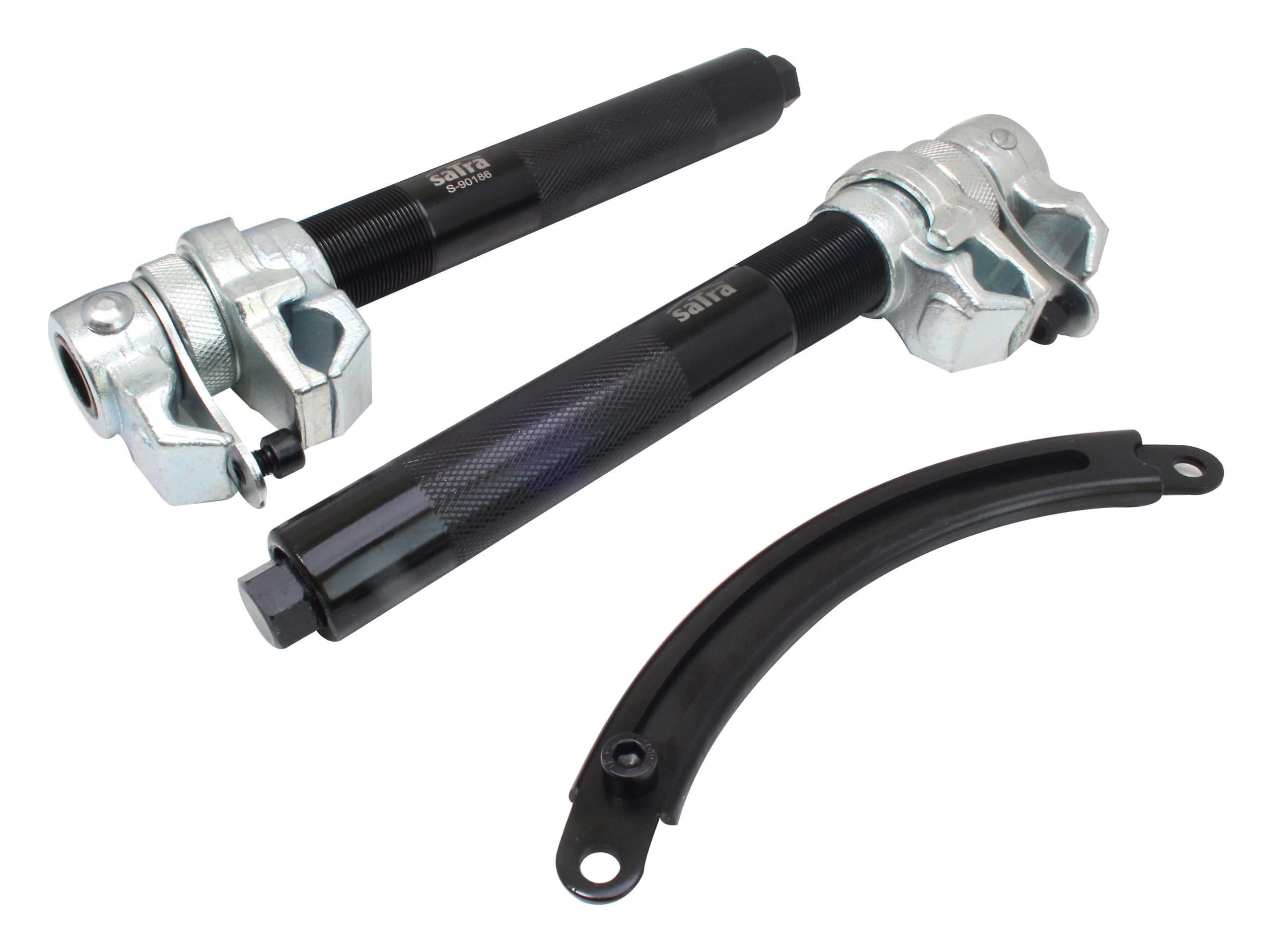

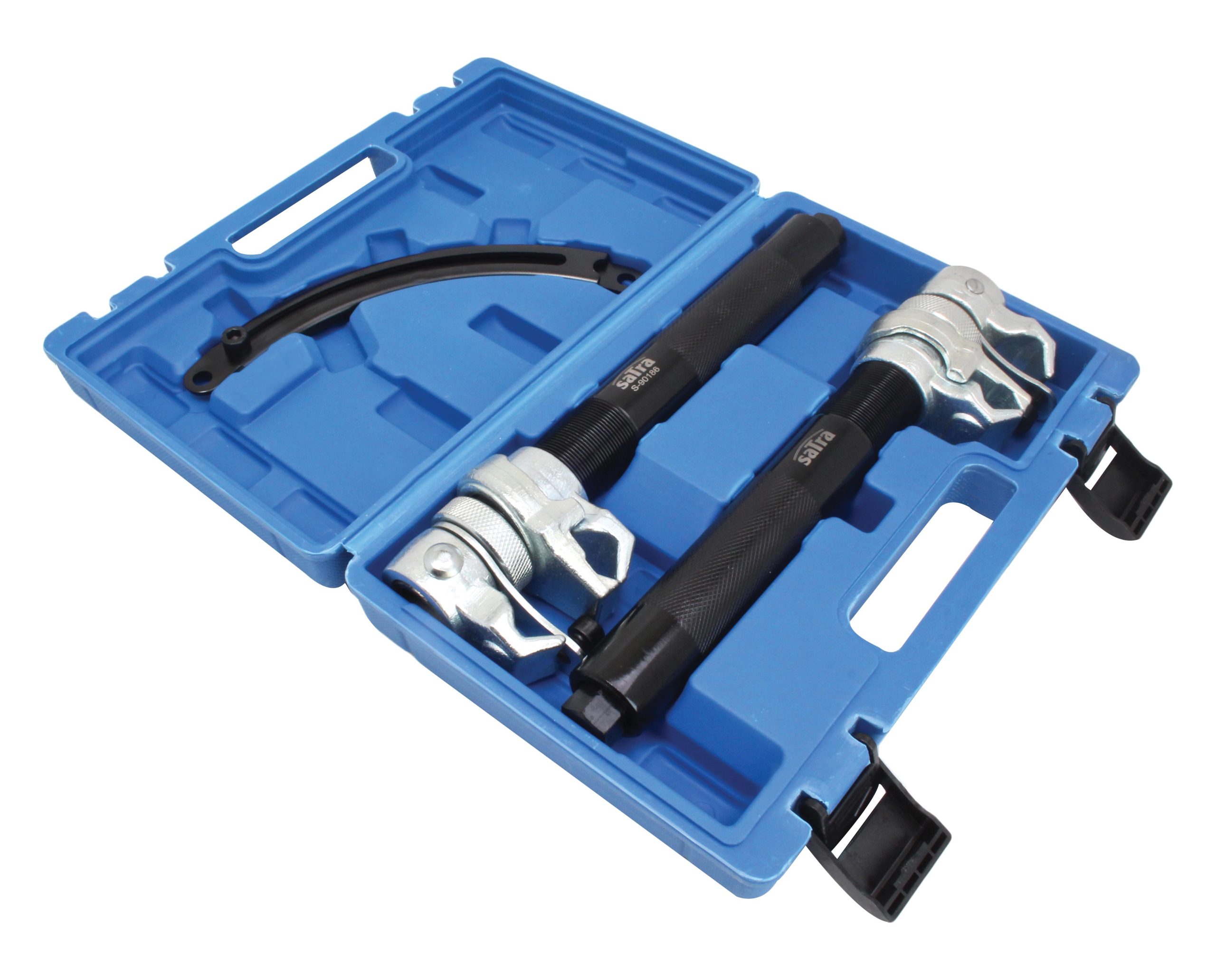

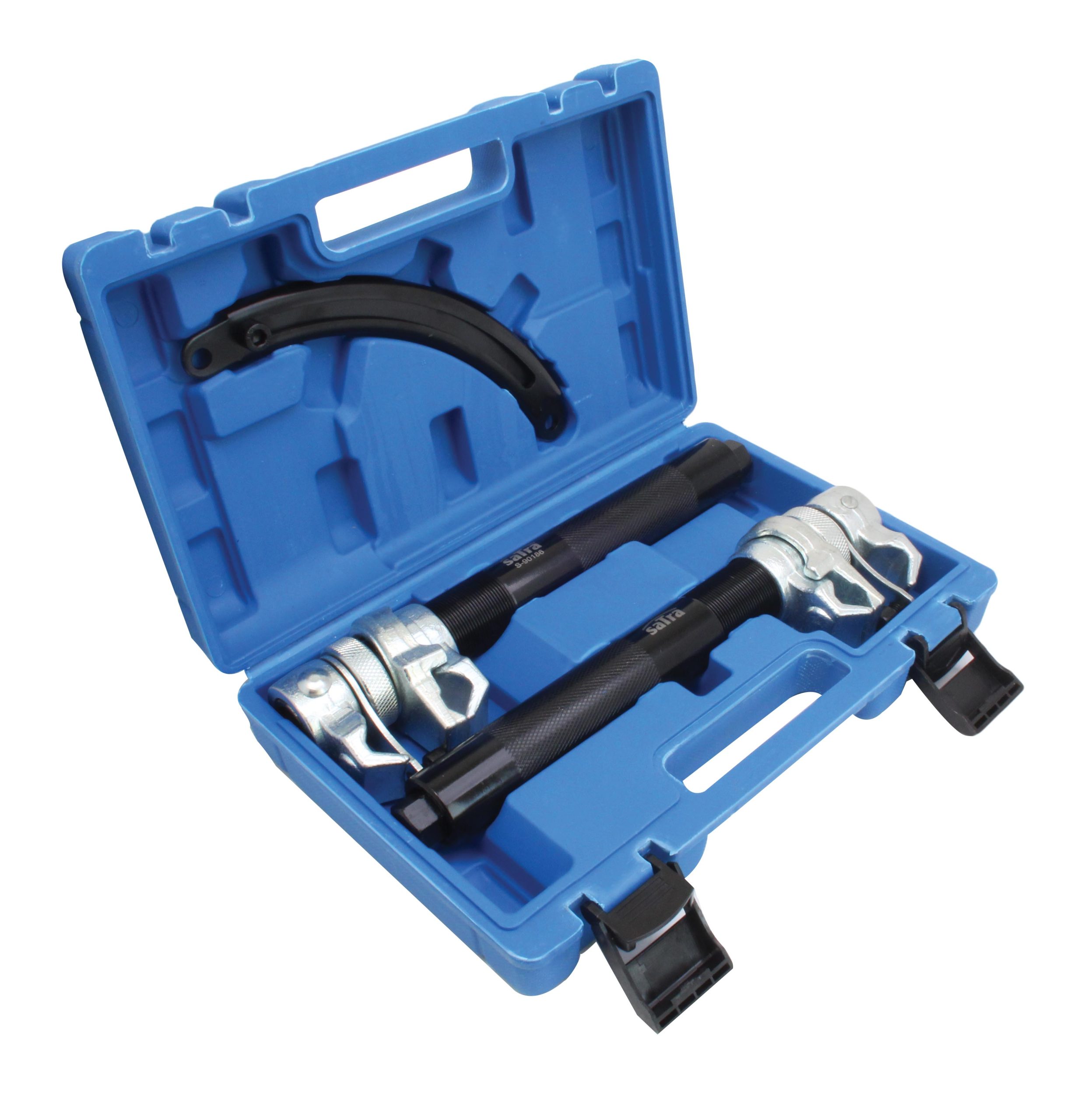

HEAVY DUTY COIL SPRING COMPRESSOR WITH JAWS PC



Solid and durable construction adapted to pull suspension springs. Pullers adapted to heavy work used in passenger cars and trucks. The durable body of the puller is resistant to bending, deformation or expansion that occur during work related to compressing suspension springs. Also appropriately designed for user safety with an arm connecting both pullers and locks preventing the spring from slipping out of the jaws.



• Maximum load on the rod 1200kg (in the case of using one puller it is 600kg)

• Puller working range: 50 – 2280 mm

• Total length of the puller: 455 mm

• 4 jaws profiled appropriately for the spring allow for the installation of springs of different diameters.

• Threaded spindle with a hexagonal head for a 19m key

• Safety arm that provides additional safety during use.
