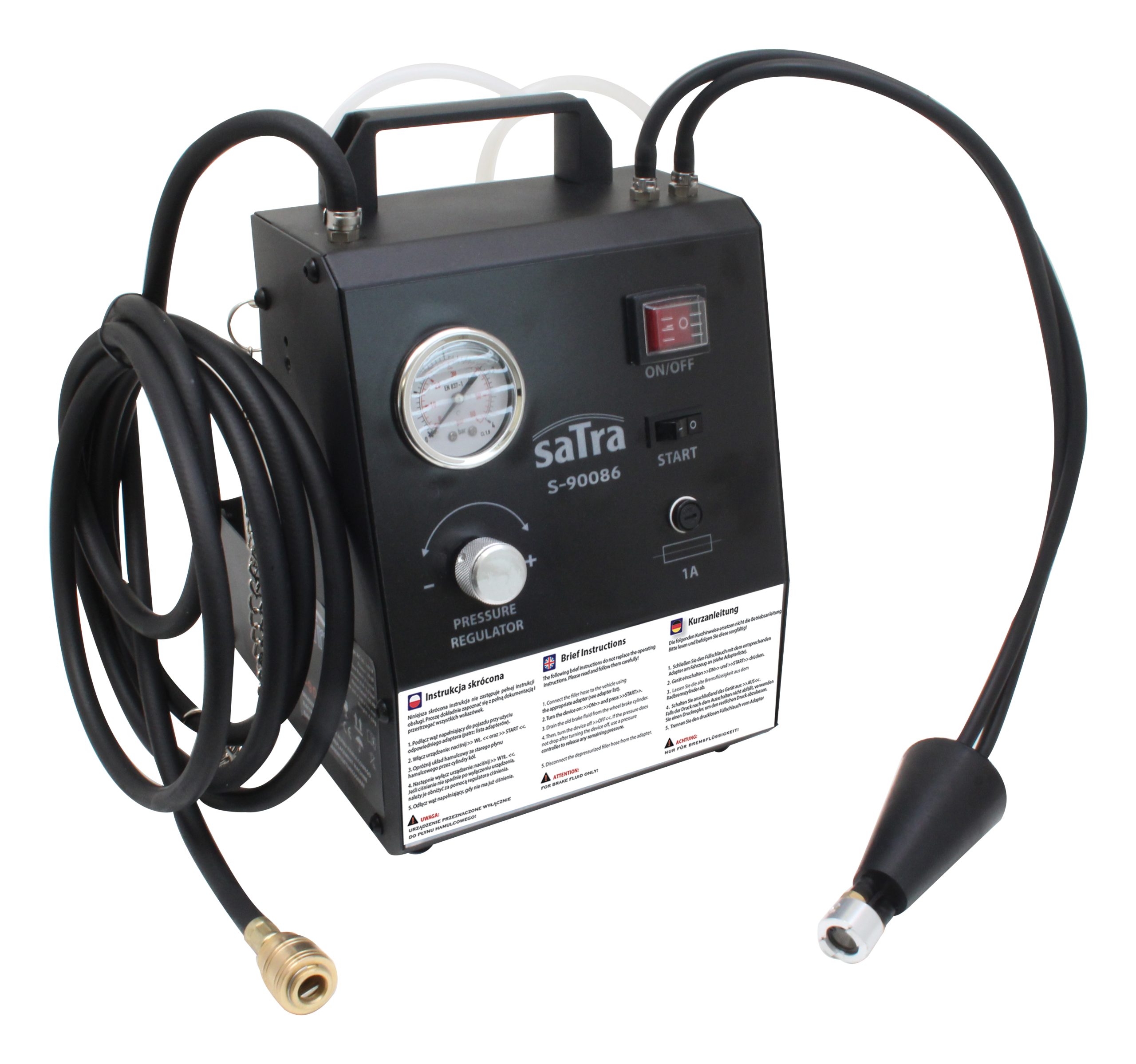

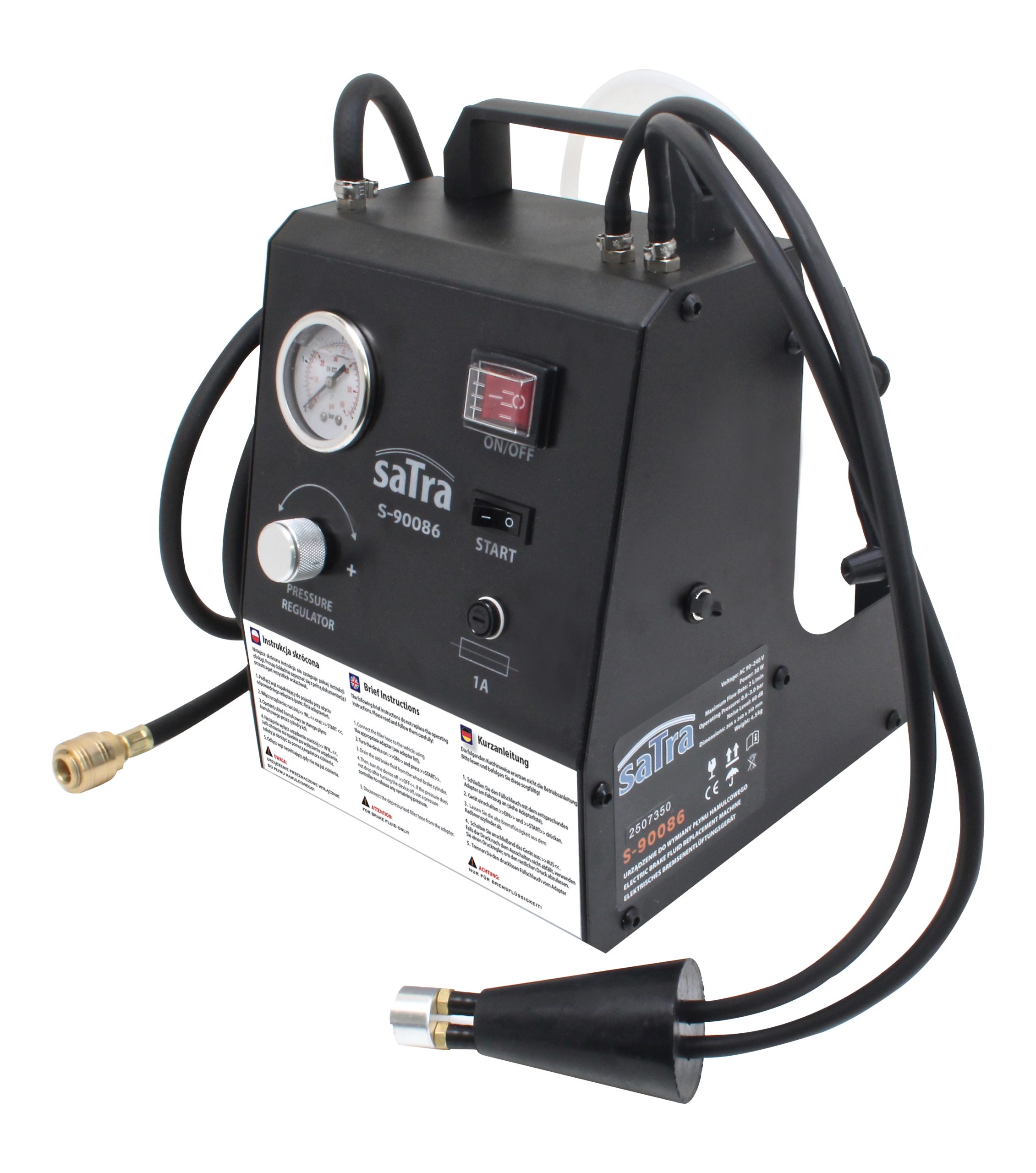

ELECTRIC BRAKE FLUID REPLACEMENT MACHINE



A compact device used for bleeding and replacing brake fluid, featuring a system that prevents air from entering the system. Fully mobile and functional, the unit is suitable for all ABS / ESP / EBS / SBC systems in European, Asian, and American vehicles. The constant pumping pressure ensures proper brake fluid replacement, eliminating the need for manual bleeding and allowing operation by just one person, which significantly simplifies and speeds up the working process.

The pump can be powered by a 12V battery or a mains power supply connected to a standard outlet, and it features adjustable pressure ranging from 0.6 to 3.0 bar.



Operating Principle:



Brake fluid is taken from its container by a pump operating at up to 3.0 bar pressure and is continuously pumped into the brake fluid reservoir. The individual wheel brake cylinders can then be drained of their used brake fluid until the new brake fluid comes through.

You thus avoid the regular emptying and filling operations, in contrast to conventional systems and also avoid any resulting water absorption in the brake fluid.

The pump used to fill the brake fluid reservoir is equipped with pressure monitoring. Should it not be possible to build pressure or should the pump pull in air, the pump switches itself off automatically.

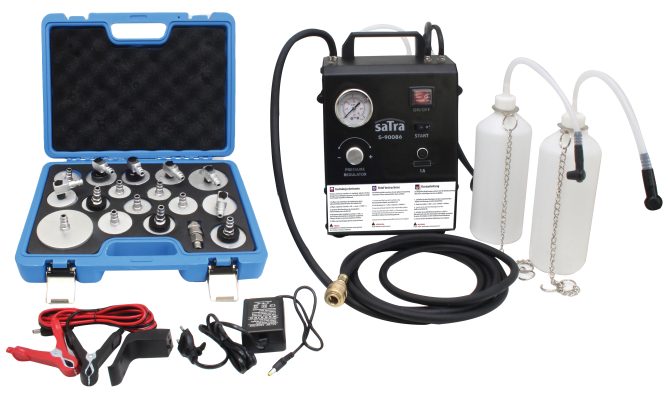

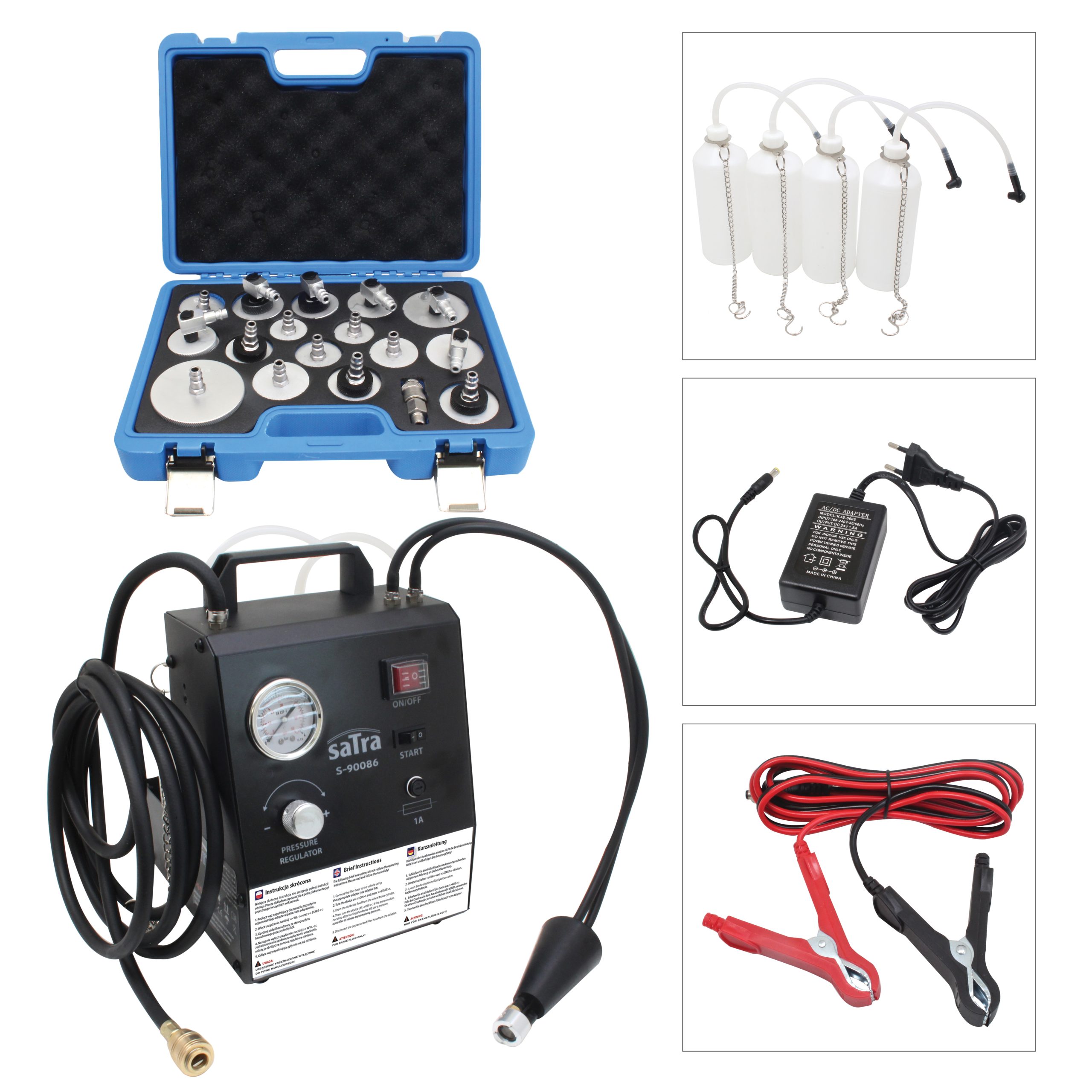

Set includes:

• Brake fluid bleeding and replacement device

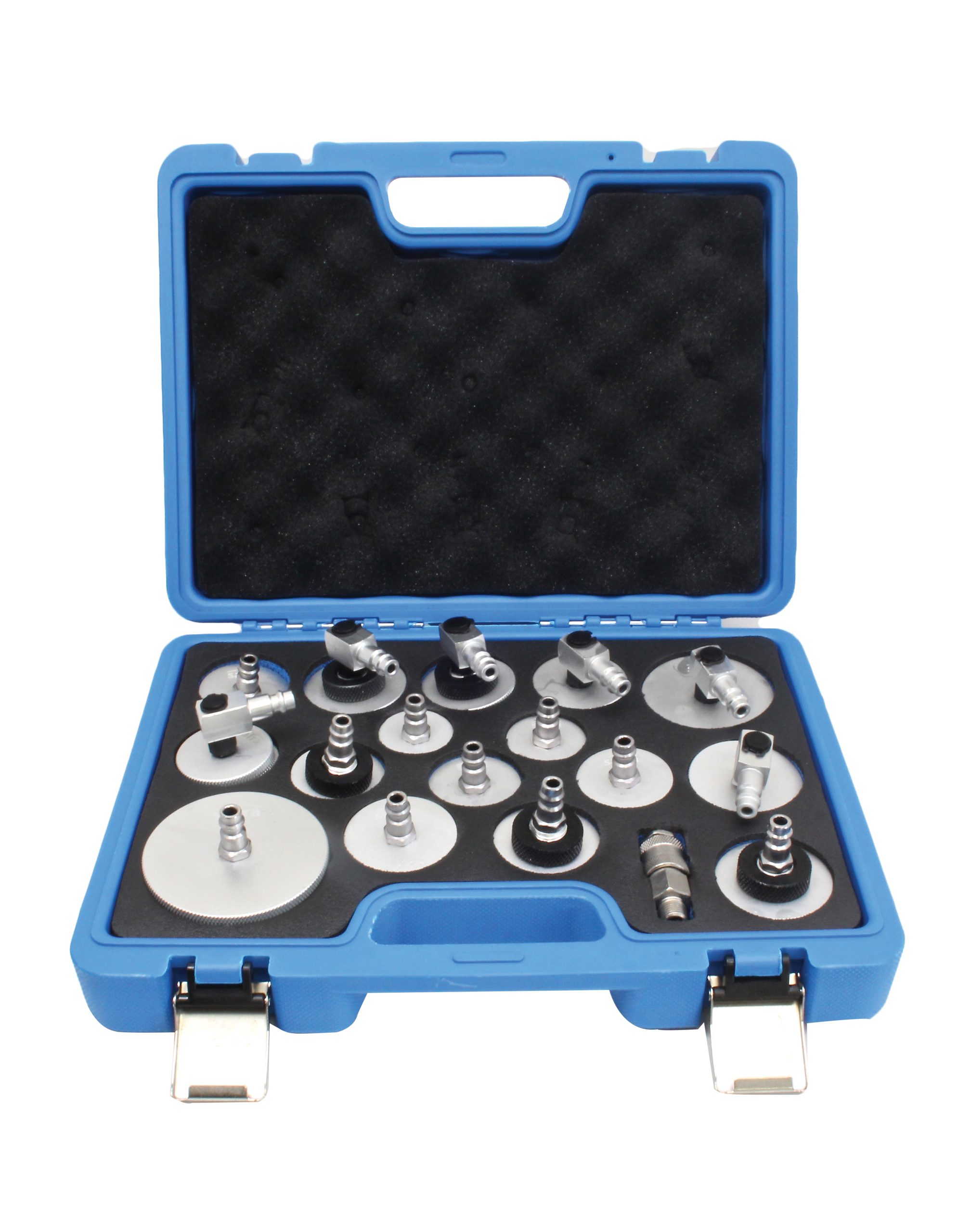

• 16 universal adapters for Mercedes-Benz, BMW, Audi, Skoda, Fiat, Lexus, Toyota, Honda, Nissan, Ford, Chevrolet, Jeep, Tesla and many others.
• Quick connector
• AC-DC power supply

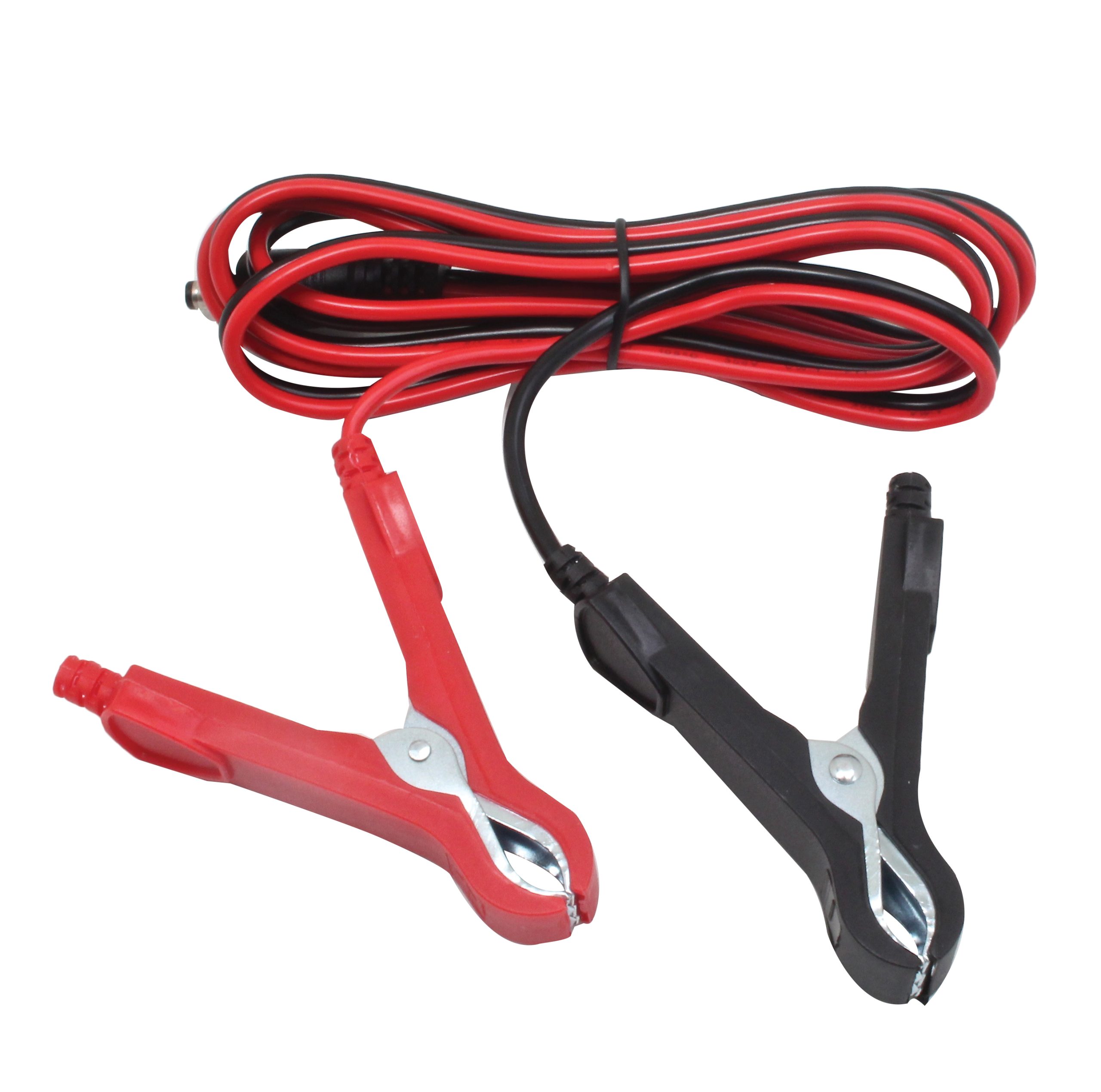

• Power cable with battery clamps

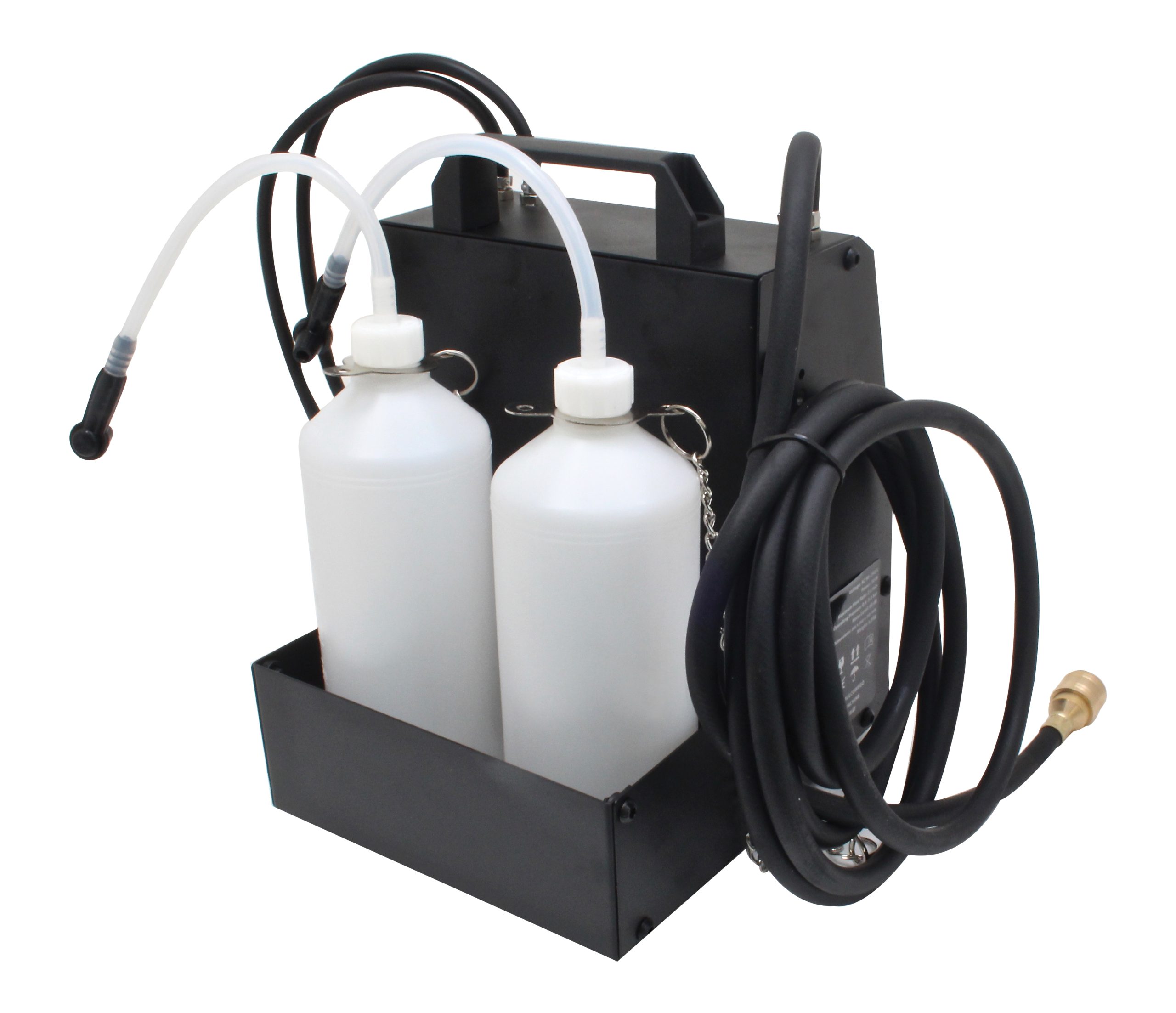

• 4 pcs. × 1L container





Technical Specifications:

Voltage:                                              AC 90–240 V

Power:                                 30 W

Maximum Flow Rate:   2 L/min

Operating Pressure:     0.6–3.0 bar

(the device shall not be set to work at pressure over 3.0 bar)

Anti-air:                                              Supported

Refill Hose:                       3.5m

Noise Level:                     60 dB

Dimensions:                    205 x 240 x 310 mm

Weight:                                               4,5 kg



Do not use for fuels and solvents!
