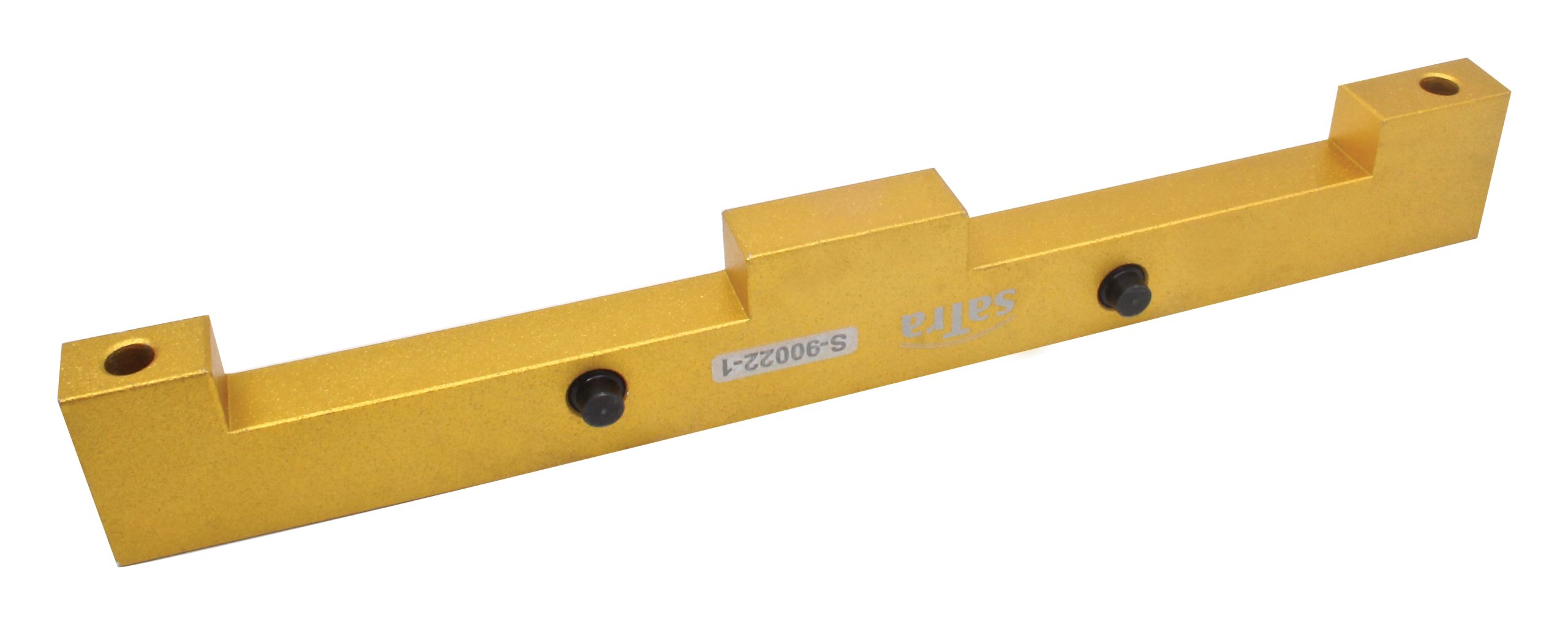

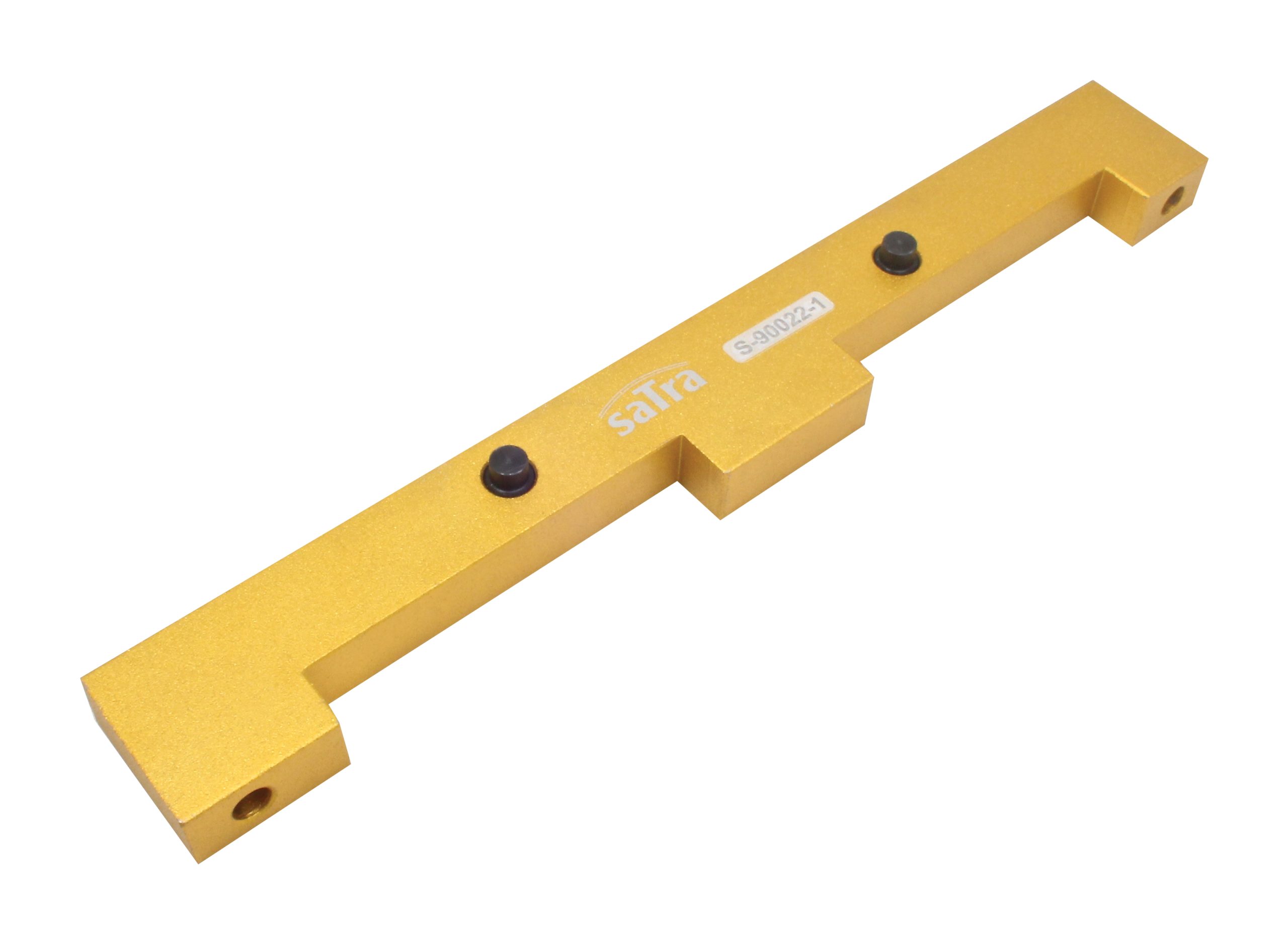

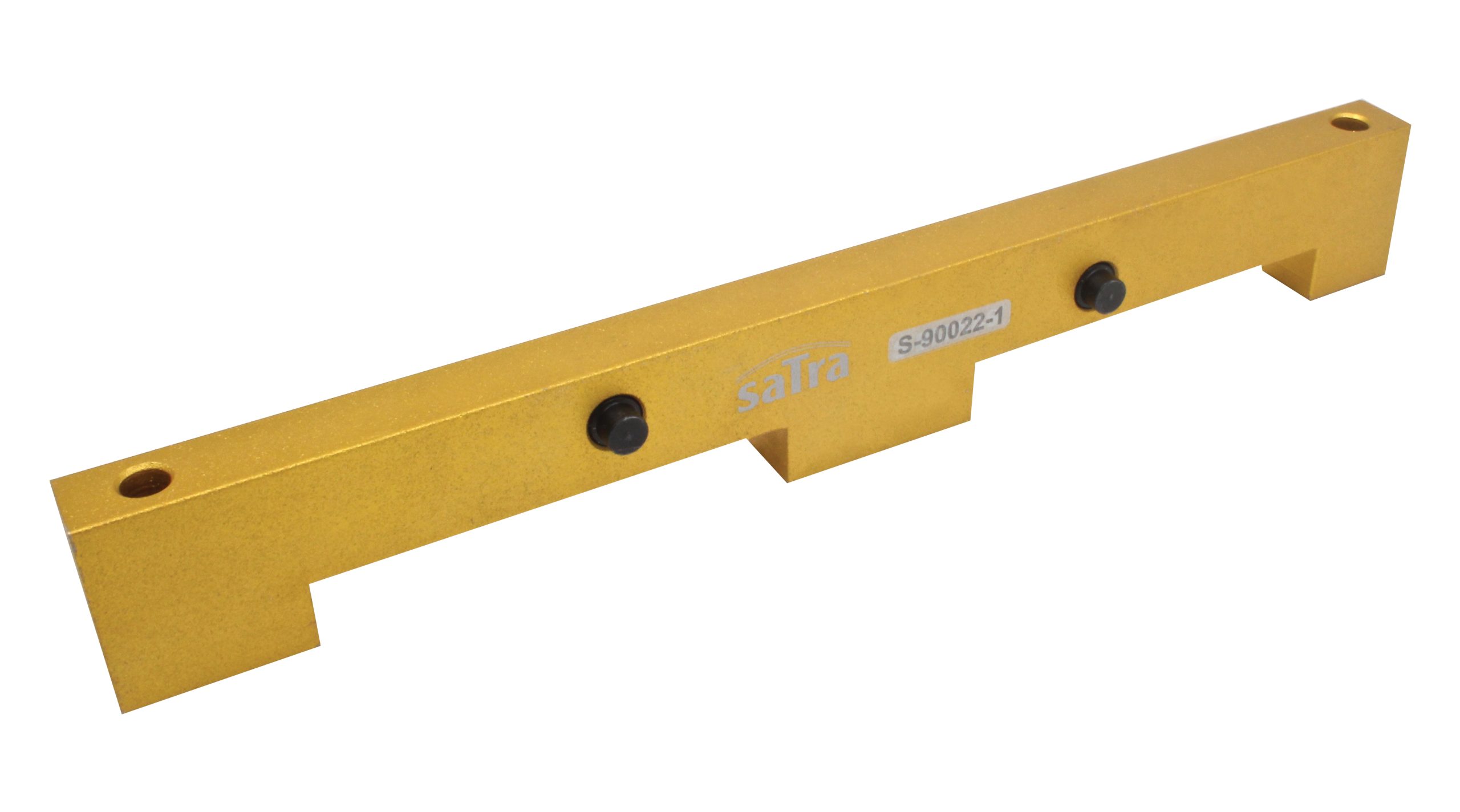

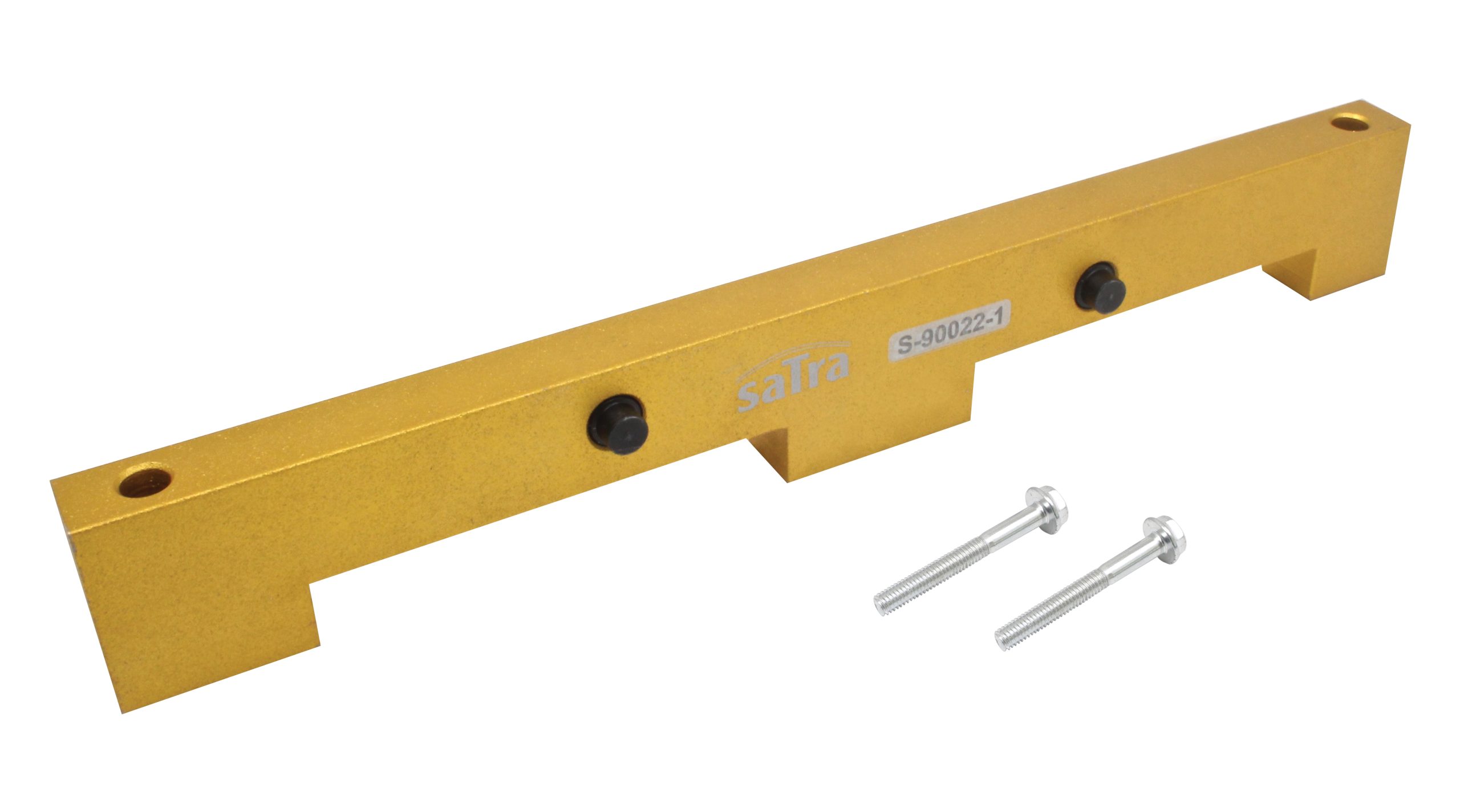

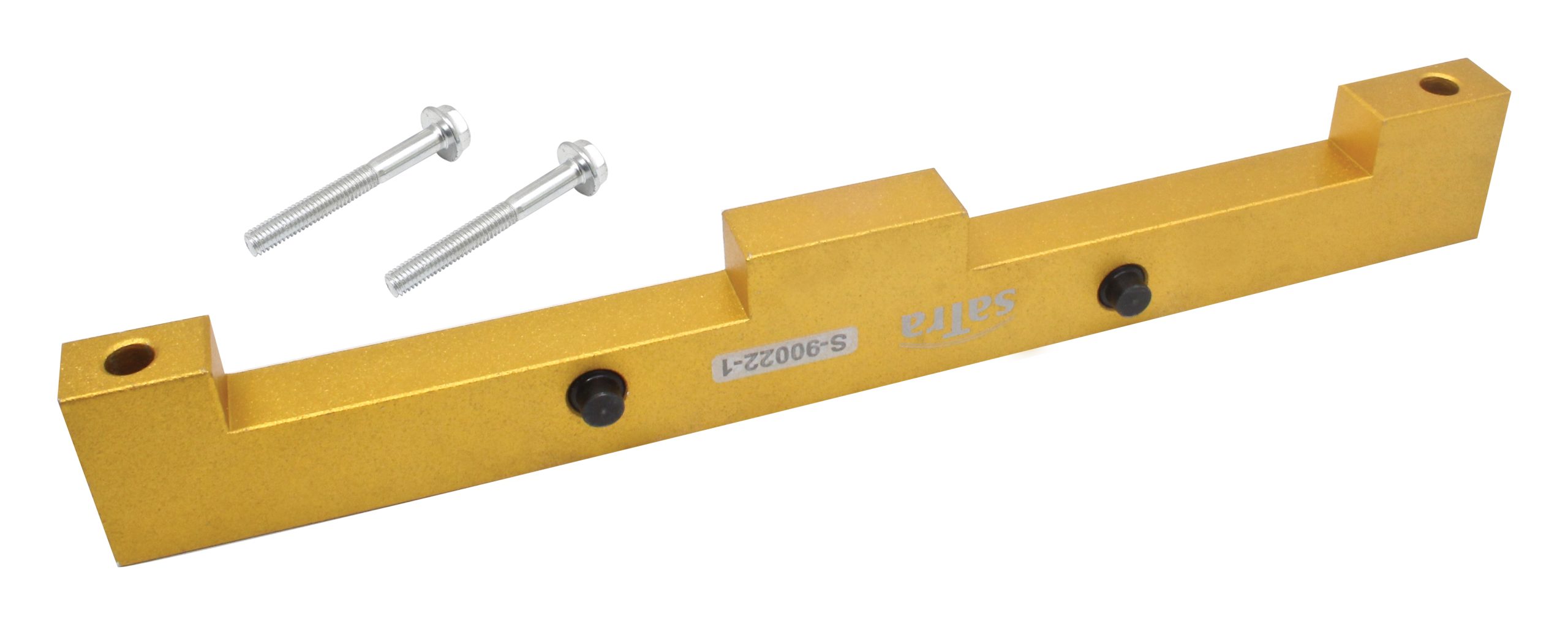

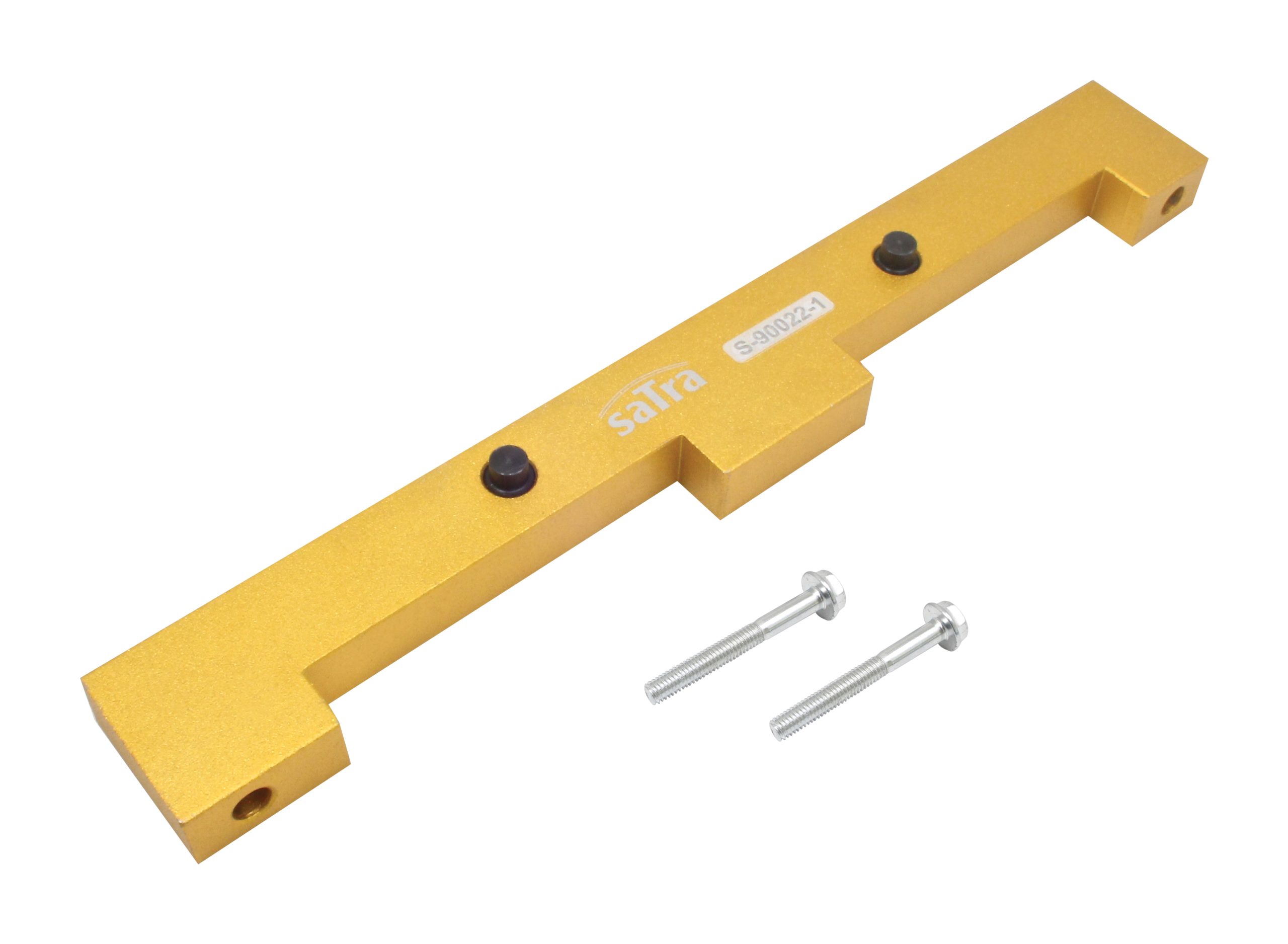

CAMSHAFT LOCKING TOOL FOR BMW

Camshaft locking tool for engines with the Valvetronic system.
The tool is used during timing replacement or adjustment. It allows the camshafts to be locked in the correct position so that the timing chain can be installed properly and the valves open at the right moments.

The tool also enables servicing of the Double VANOS unit.

Compatible with BMW models:
118i, 120i, 316ti, 318ti, 320i, 520i, Z4, X3

Engine types (with VALVETRONIC system):
BMW: N46, B18, B20B, B20, N42, B18A, B20A, N46T

Vehicle compatibility:

• E81 (116i / 118i / 120i), E87 (118i / 120i)
• E88 (120i), E46 (316i / 316ti / 318ci / 318ti)
• E90 (318i / 320i), E91 (318i / 320i), E92 (320i)
• E93 (320i), E60 (520i), E83 (X3 2.0), E85 (Z4 2.0)

OEM: 119 340
