MERCEDES BALL  JOINT  PRESS ASSEMBLY DISASSEMBLY  PRESS



Assembly and disassembly ball joints at Mercedes W220 (S-TYPE 1998-2005), W211 (E-Type 2002-2009) and W230 (SL-Type from 2001).

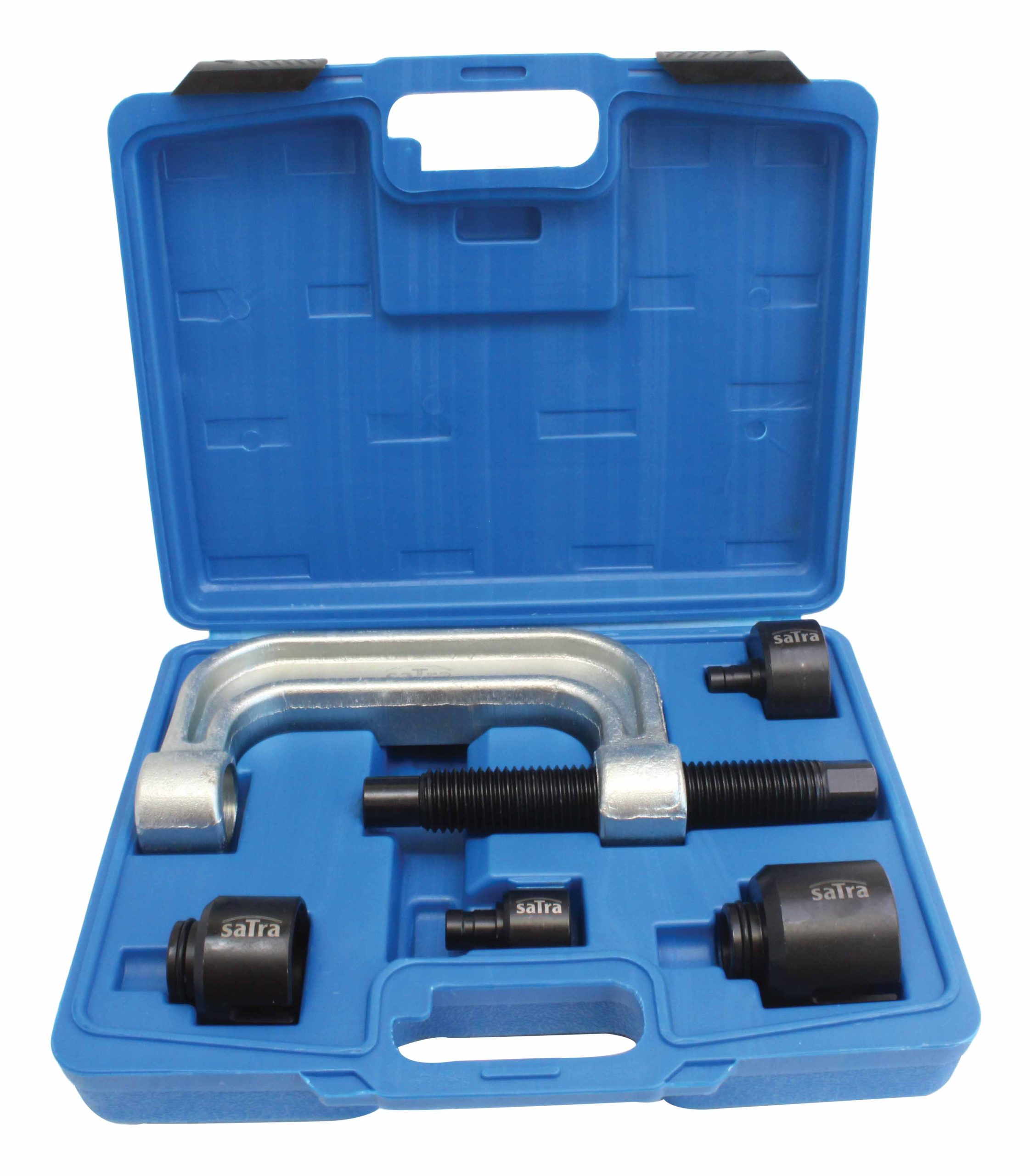

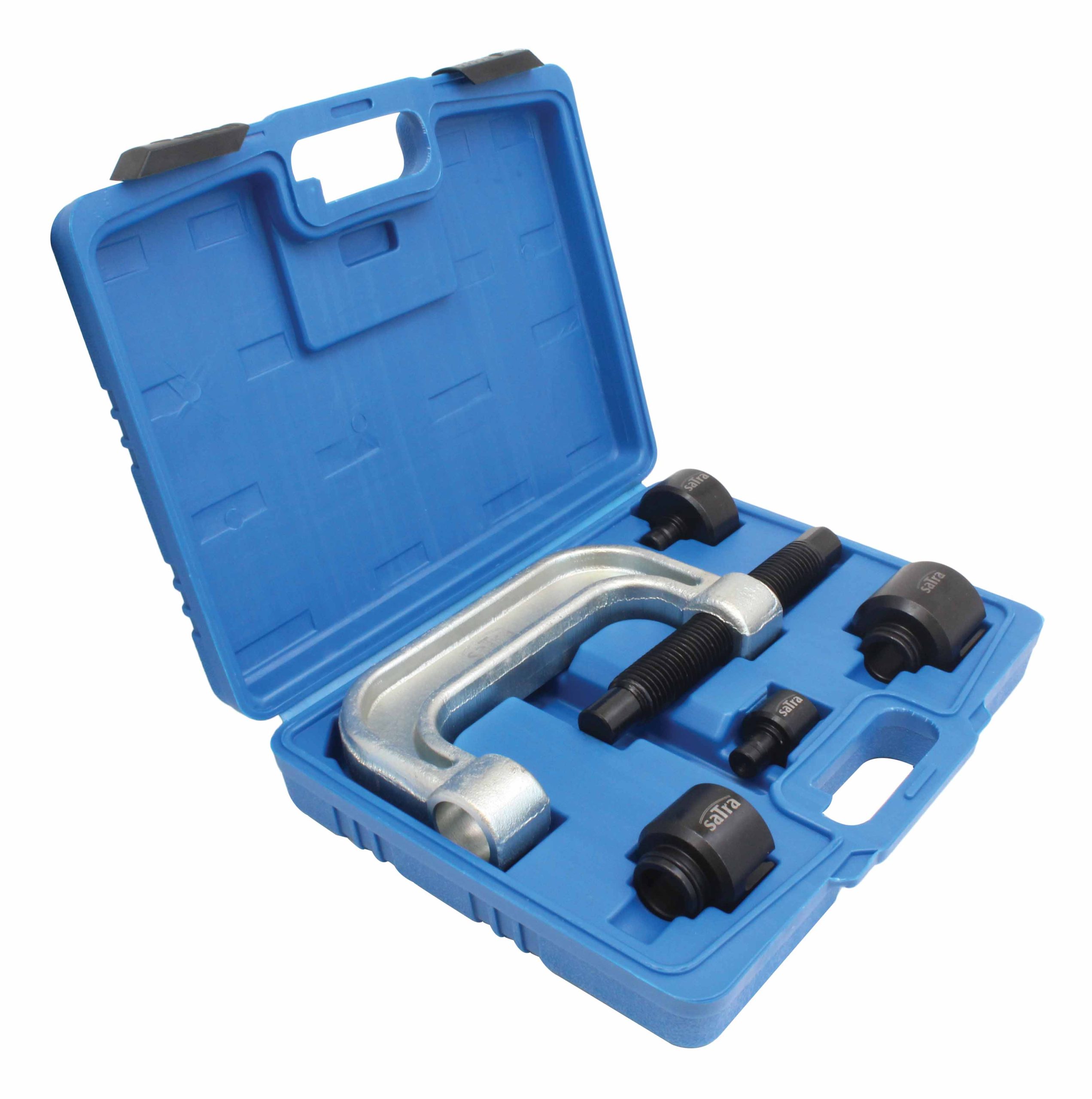

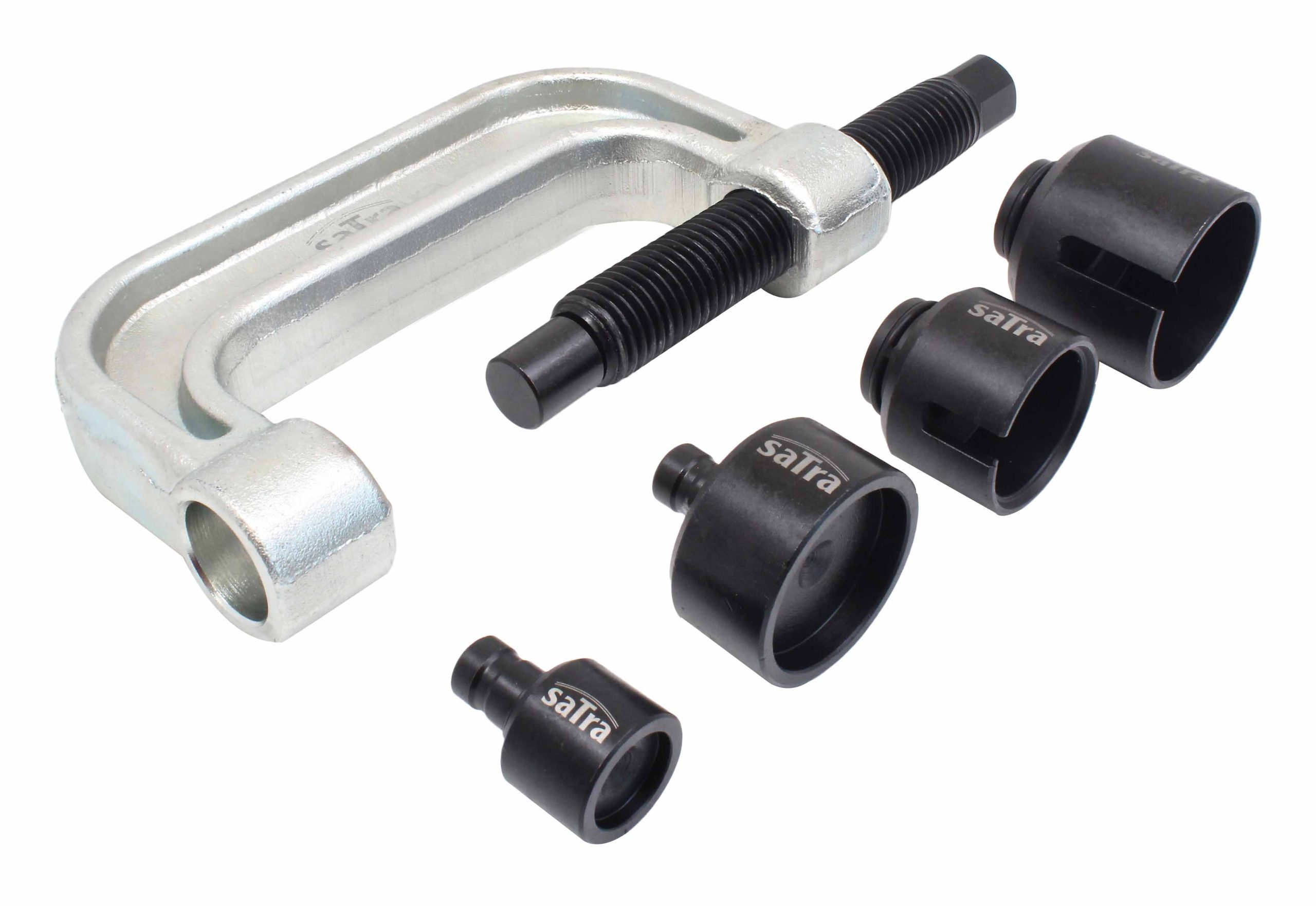

Satra Provides a heavy duty version for best performance. Set comes with: 1xSpindle M28 x 3.5 mm with a length of 196.5 and 24 mm hex drive

1x Adapter 49 mm length and 22.1 mm outside dia.

1x Adapter 49.9 mm length and 33.1 mm outside dia., inside dia 24.1 mm

inside height 4.3 mm

1x Adapter 54 mm length and 57.3 mm outside dia., inside dia. 47.8 mm

inside height 8.3 mm

1x Pressure Adapter 47.4 mm length, outside dia. 51.2 mm, inside dia.

40.6 mm, inside height 25.3 mm

1x Pressure Adapter 61 mm length, outside dia. 60.1mm, inside dia

54 mm, inside height 35.5 mm
