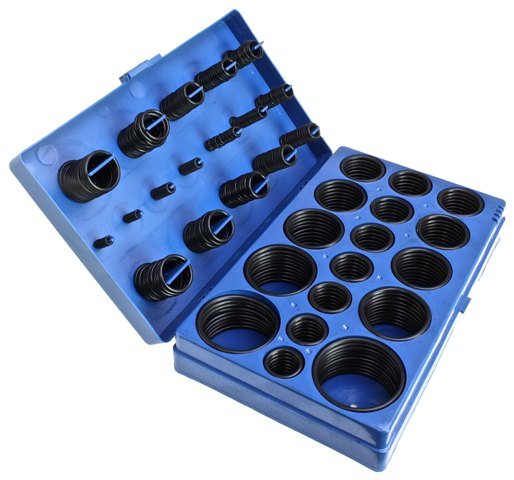

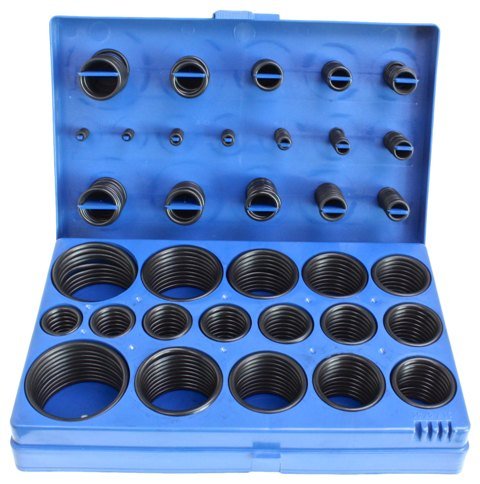

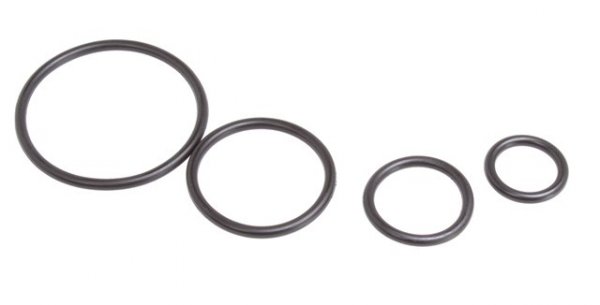

METRIC  UNIVERSAL  O-RING  SET  ASSORTMENT

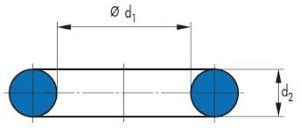

number	ø d1	d2	quantity		number	ø d1	d2	quantity
R01	3	1.5	20		R17	20	3.5	10
R02	4.4	2	20		R18	22	3.5	10
R03	5	2	18		R19	23.5	3.5	10
R04	7	1.5	23		R20	25	3.5	10
R05	10	1.5	23		R21	26.5	3.5	10
R06	13	1.5	23		R22	28	3.5	10
R07	10	2.5	14		R23	30	3.5	10
R08	11	2.5	13		R24	31	3.5	10
R09	13	2.5	14		R25	33	3.5	10
R10	14	2.5	13		R26	34.5	3.5	10
R11	16	2.5	14		R27	36	3.5	10
R12	18	2.5	14		R28	38	3.5	10
R13	19	2.5	13		R29	41	3.5	10
R14	21	2.5	14		R30	44	3.5	10
R15	22	2.5	13		R31	47	3.5	10
R16	18	3.5	10		R32	50	3.5	1
