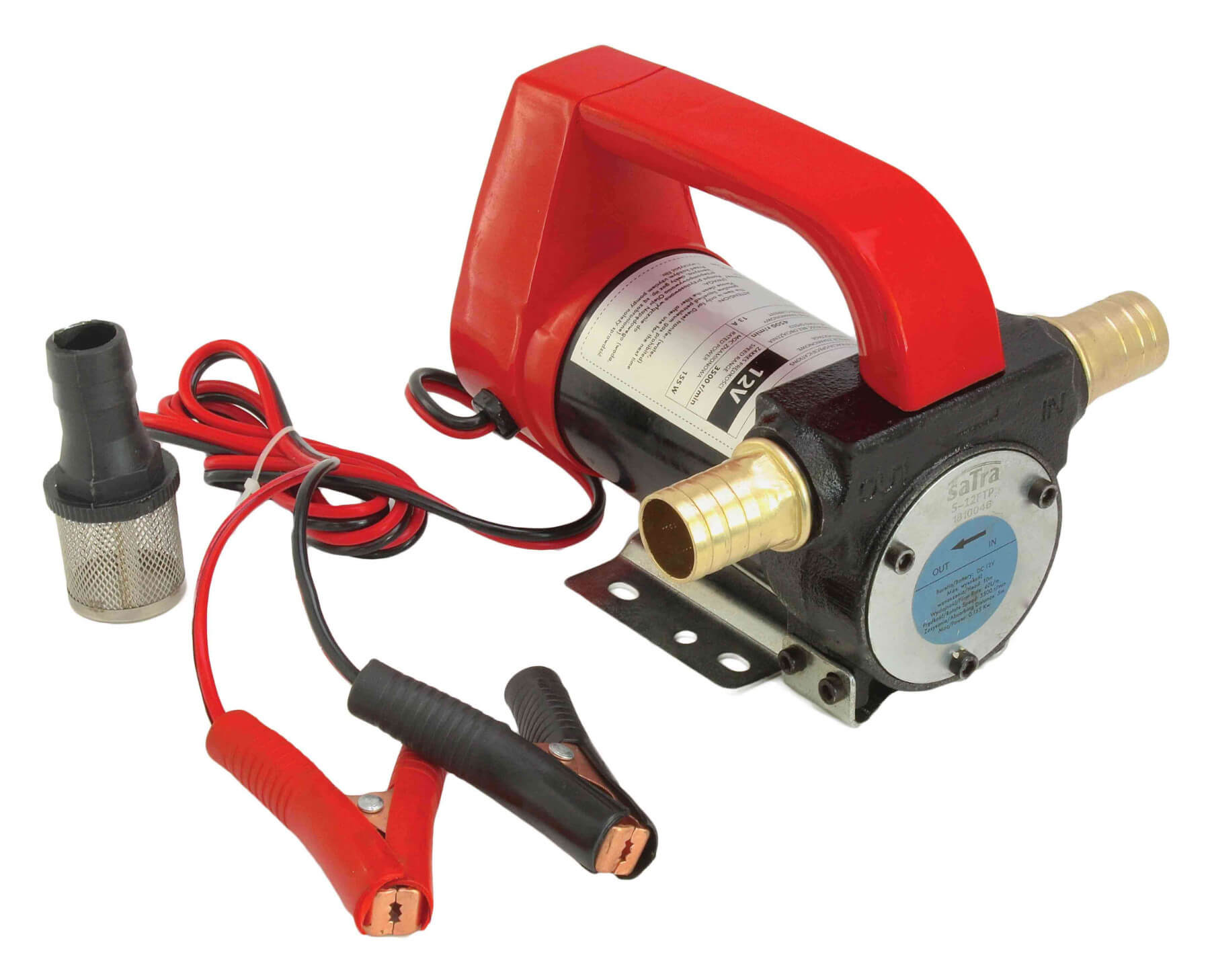

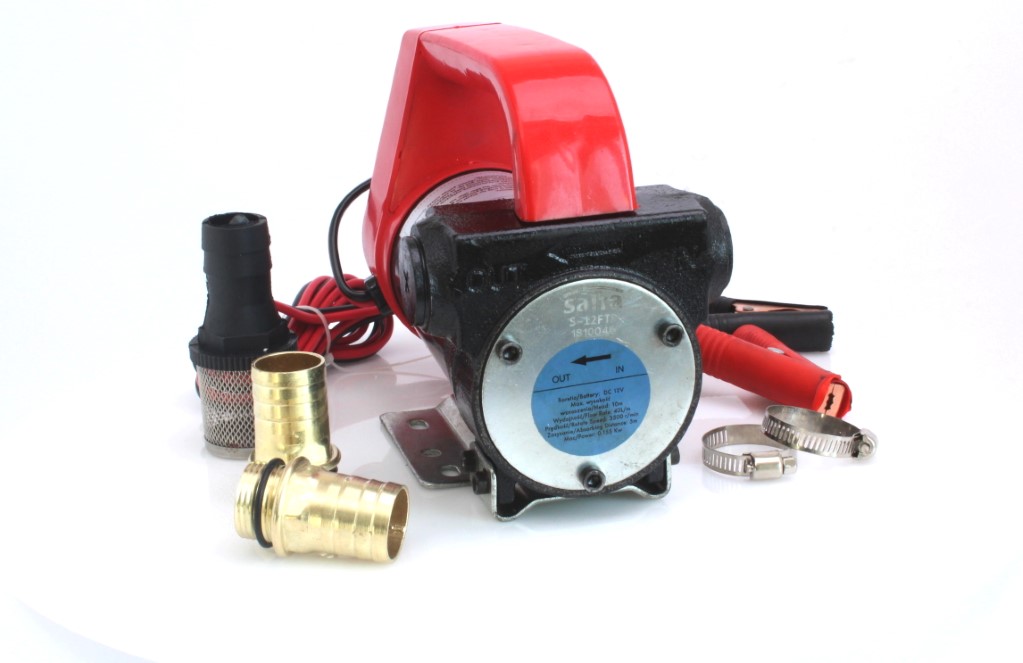

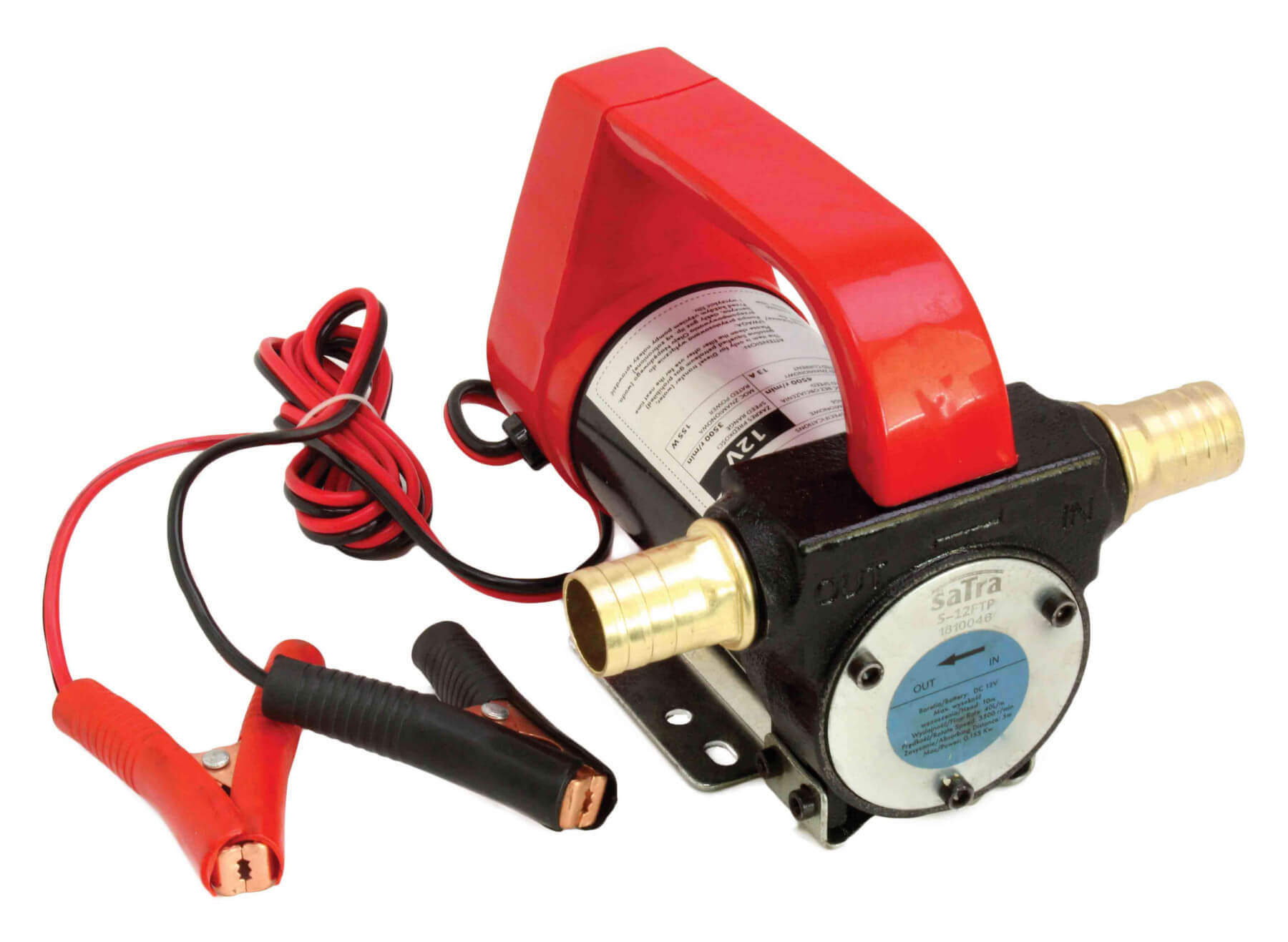

ELECTRIC FUEL TRANSFER PUMP



The pump has been tested and passed through a strict performance test for temperature resistance and anti-shock with a high quality protection rating of IP55.

Car batteries may be used to power the pump for fast and convenient fuel pumping. It may be also used with a fueling nozzle and filters for ensuring the flow of clean diesel or kerosene fuel.

This pump is designed for all kinds of machinery, tractor and farm equipment.

Application in workshop and home conditions. A pump equipped with clamps ensures connection to the battery and allows the pump to be used even in road conditions.



Model	S-12FTP
Power Supply	12V
Power	155W
Current	13A
No-Load Speed	4500 rpm
Rotate Speed	3500 rpm
Max. Suction Lift	5m
Max. Pump Output	40 L/min.
Self-Priming Up To	10 m
Inlet/Outlet Thread	3/4”
Continuous Duty Cycle	30 min
Valve	bypass
