BRAKE PIPE FLARING TOOL

This professional hydraulic brake pipe flaring tool kit is designed for producing high-quality flares on brake lines quickly and efficiently. The hydraulic design allows for fast installation and removal of the spindle, making the flaring process easier and less demanding.

The tool is suitable for use with both standard and coated brake lines manufactured from steel, aluminium, copper, and brass.

It produces both single SAE flares and double DIN flares, making it an ideal solution for professional automotive workshops and everyday brake line servicing.

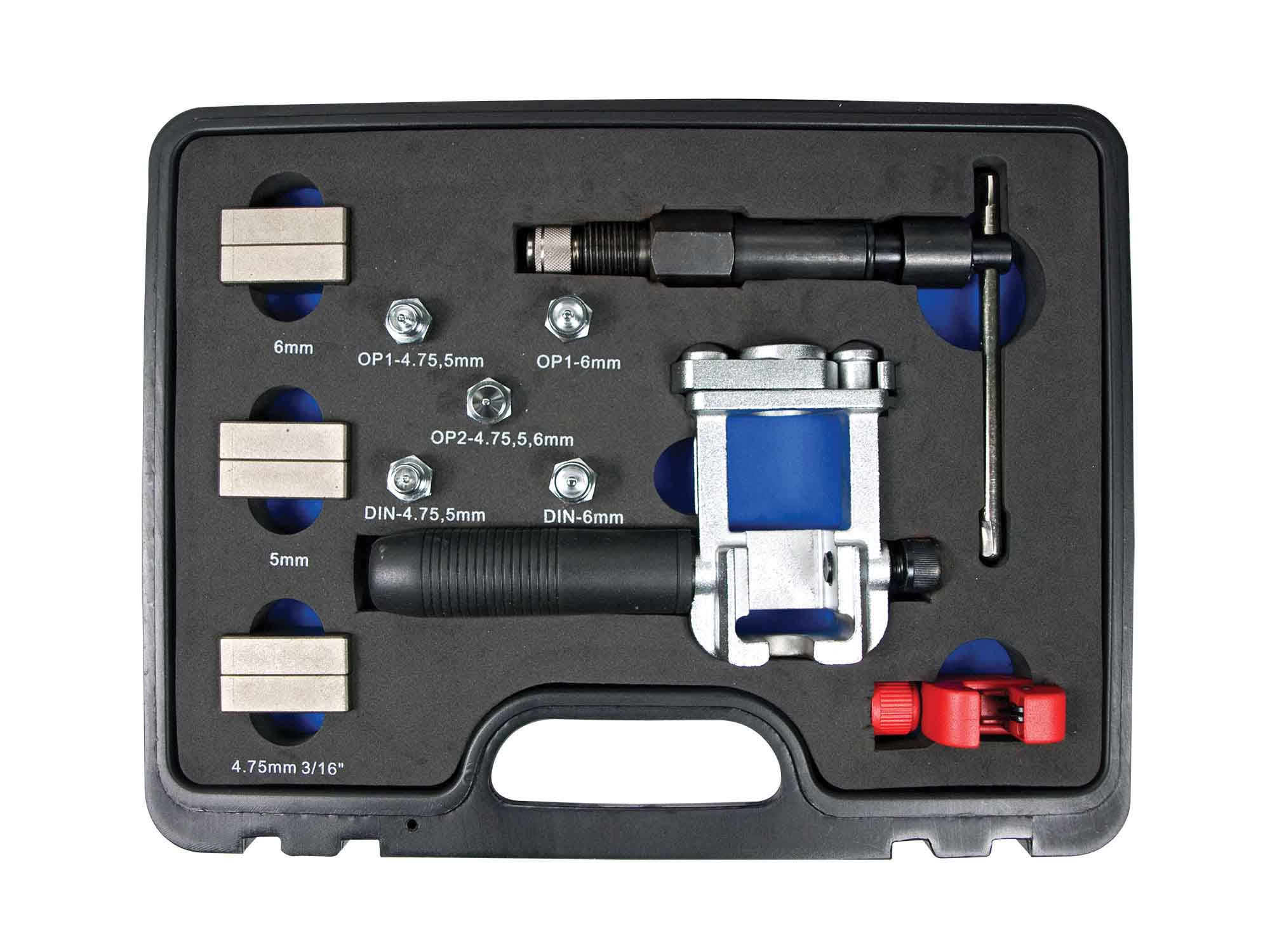

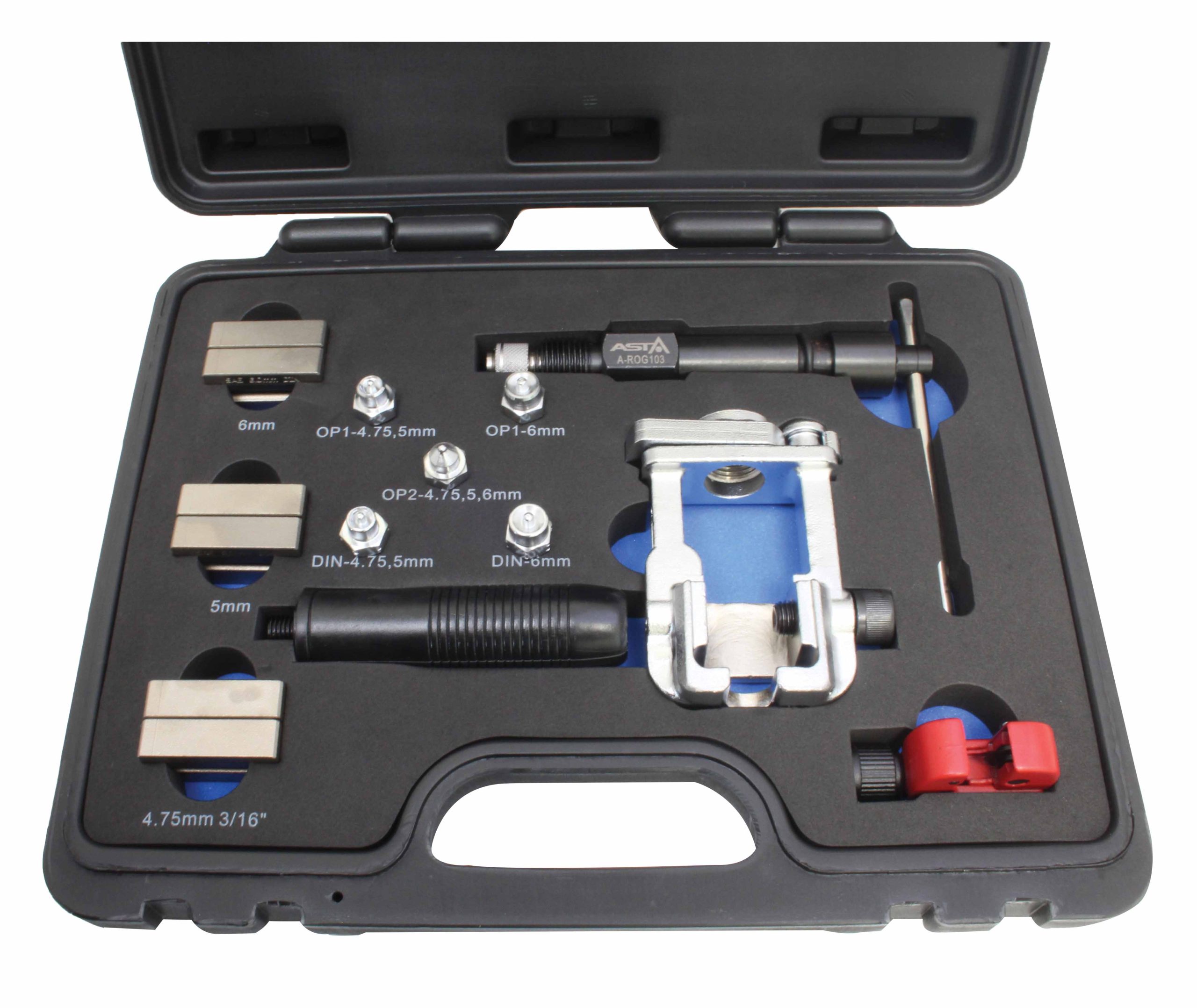

Kit Contents

• Main body with clamping jaw holder
• Reaction plate for on-vehicle operation

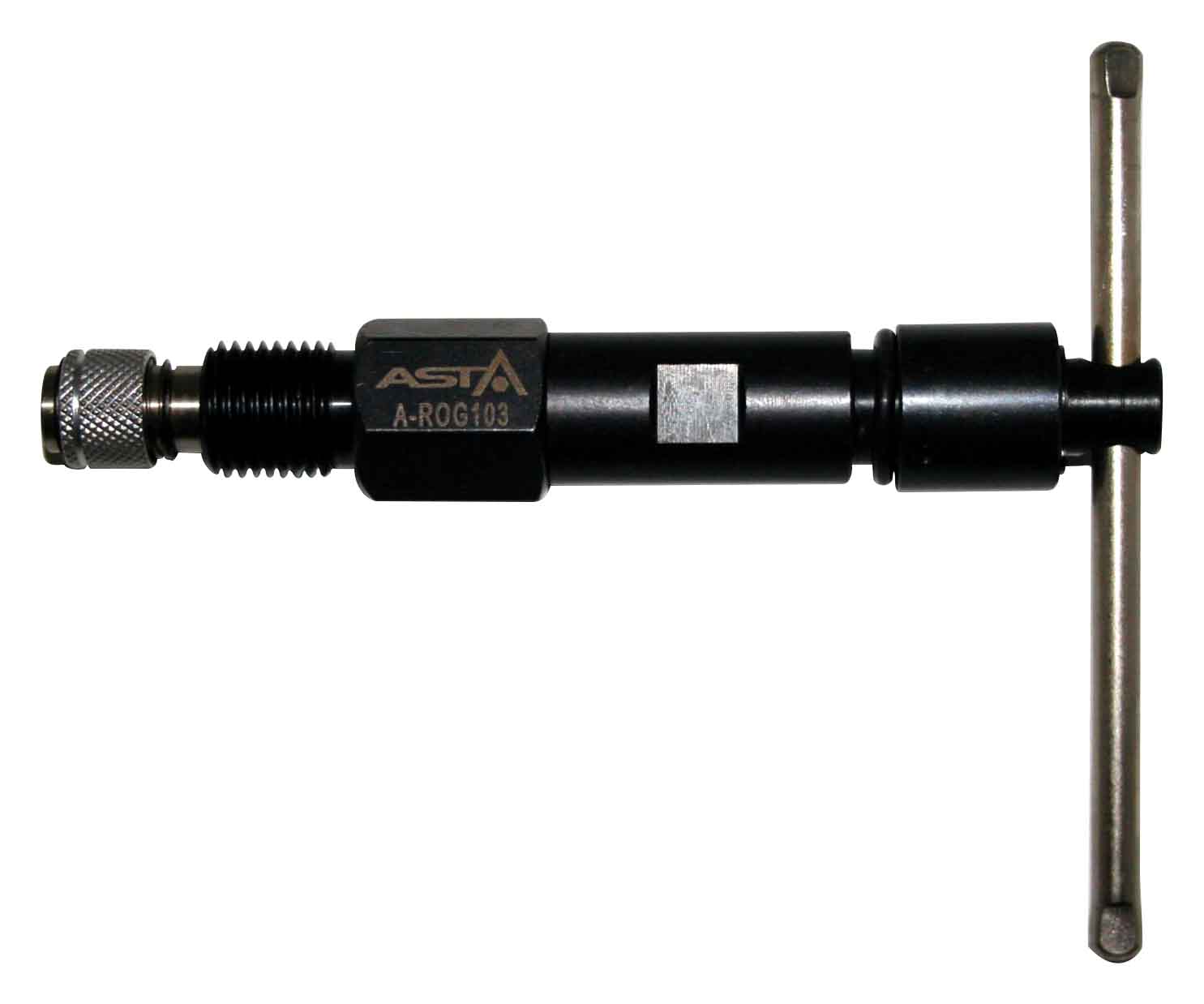

• Hydraulic oil-powered spindle
• Clamping screw with sliding T-handle
• Quick-change die holder for fast punch installation
• Pair of clamping jaws for 6 mm brake lines
• Pair of clamping jaws for 5 mm brake lines
• Pair of clamping jaws for 4.75 mm (3/16″) brake lines
• Pipe cutter with integrated deburring tool for tubing 3–16 mm in diameter
• SAE OP1 punch for 4.75 mm (3/16″) and 5 mm brake lines
• DIN punch for 4.75 mm (3/16″) and 5 mm brake lines
• SAE OP2 punch for 4.75 mm (3/16″), 5 mm, and 6 mm brake lines
• SAE OP1 punch for 6 mm brake lines
• DIN punch for 6 mm brake lines

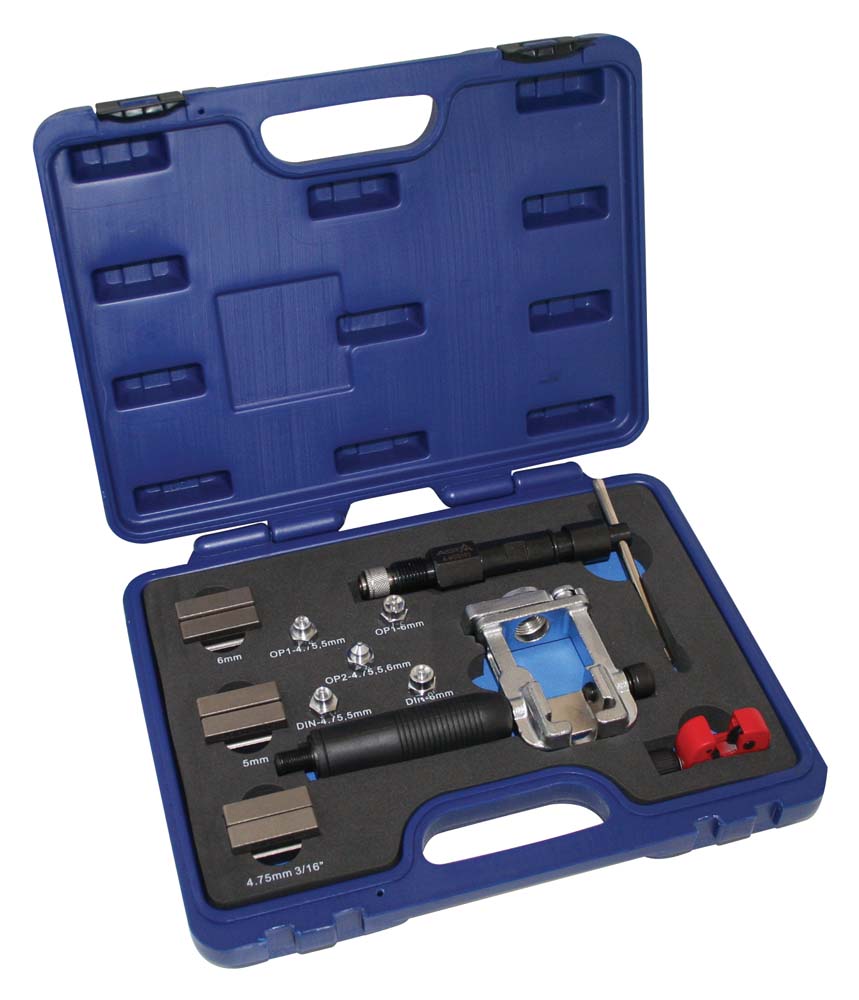

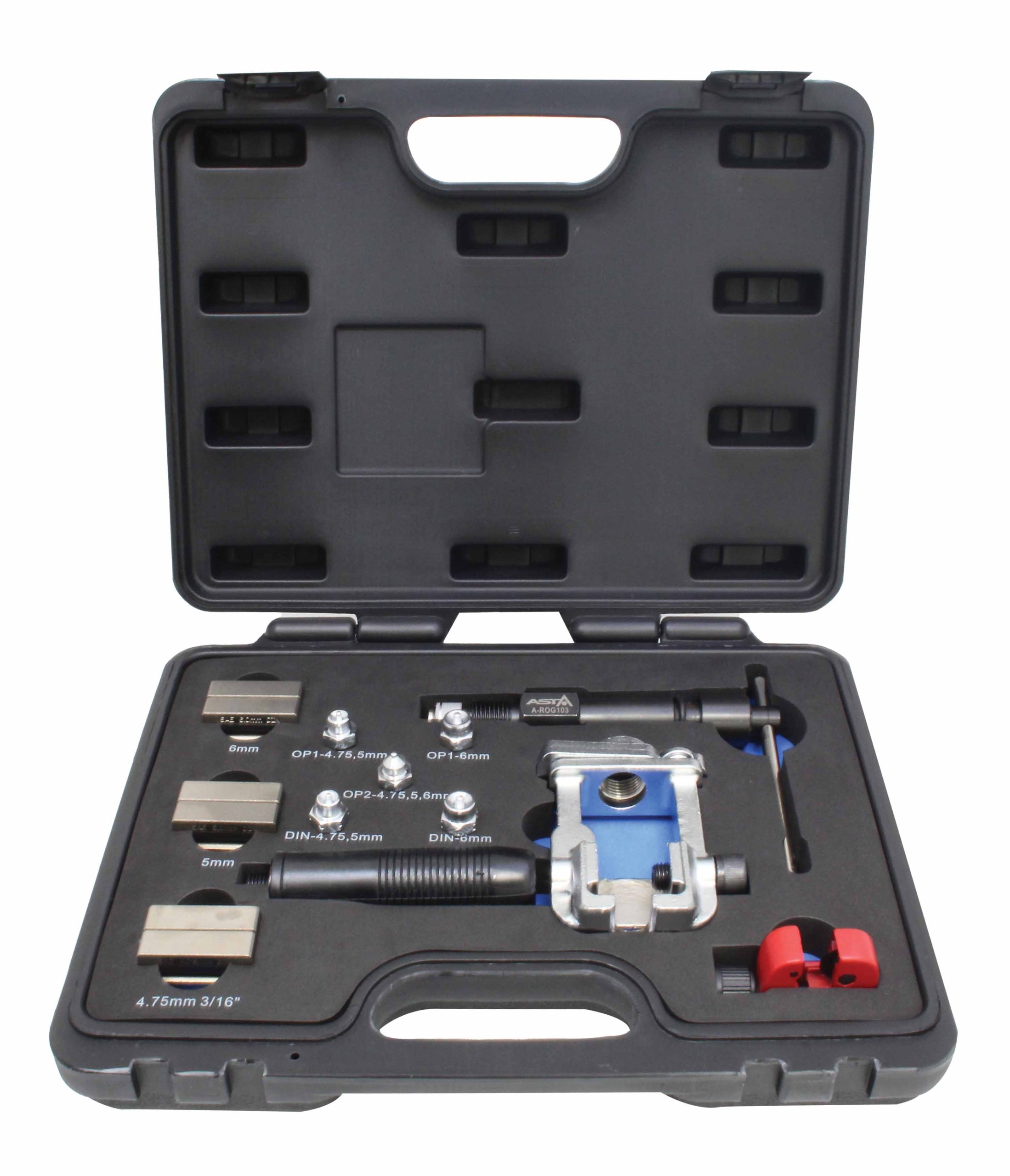

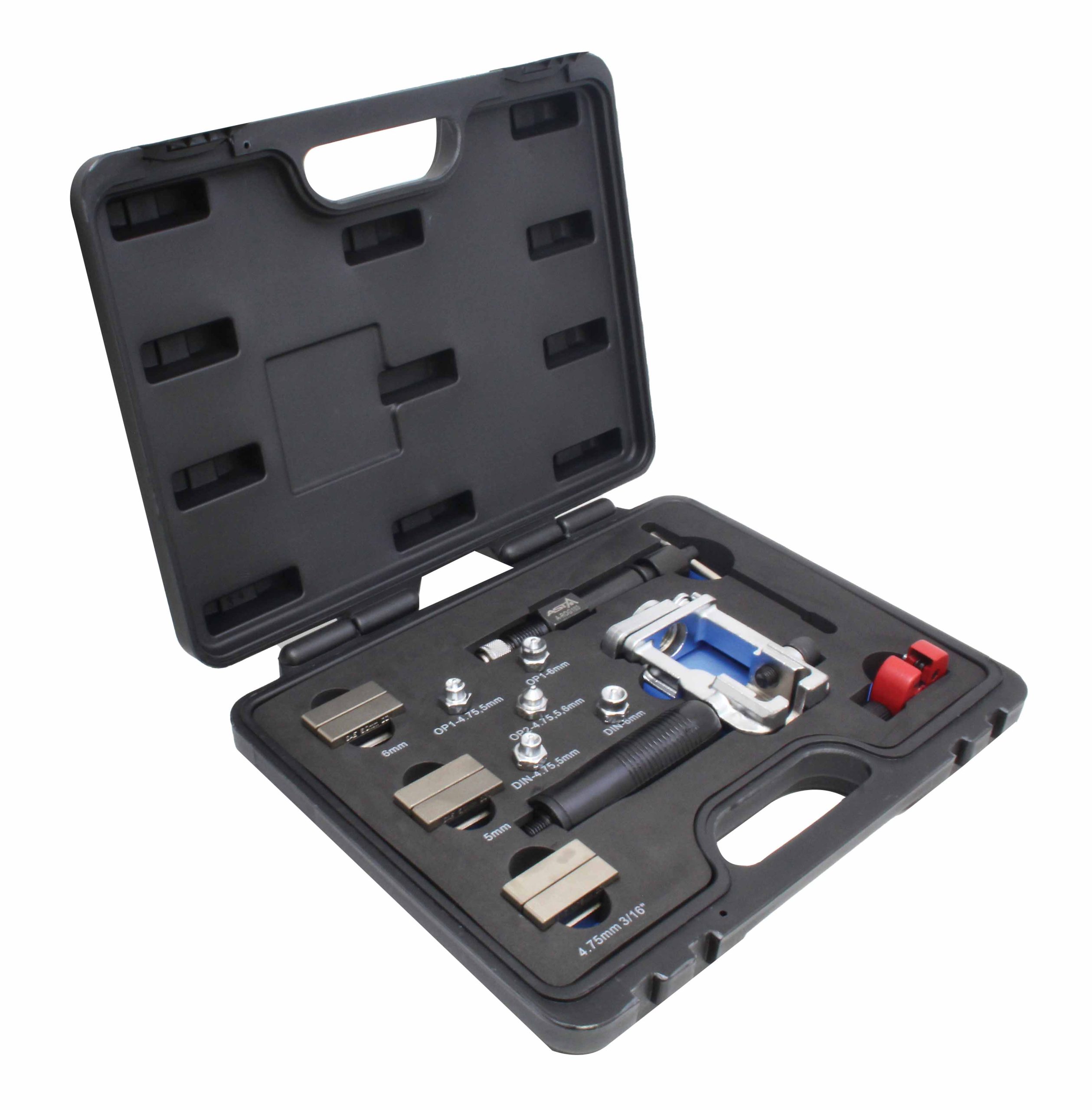

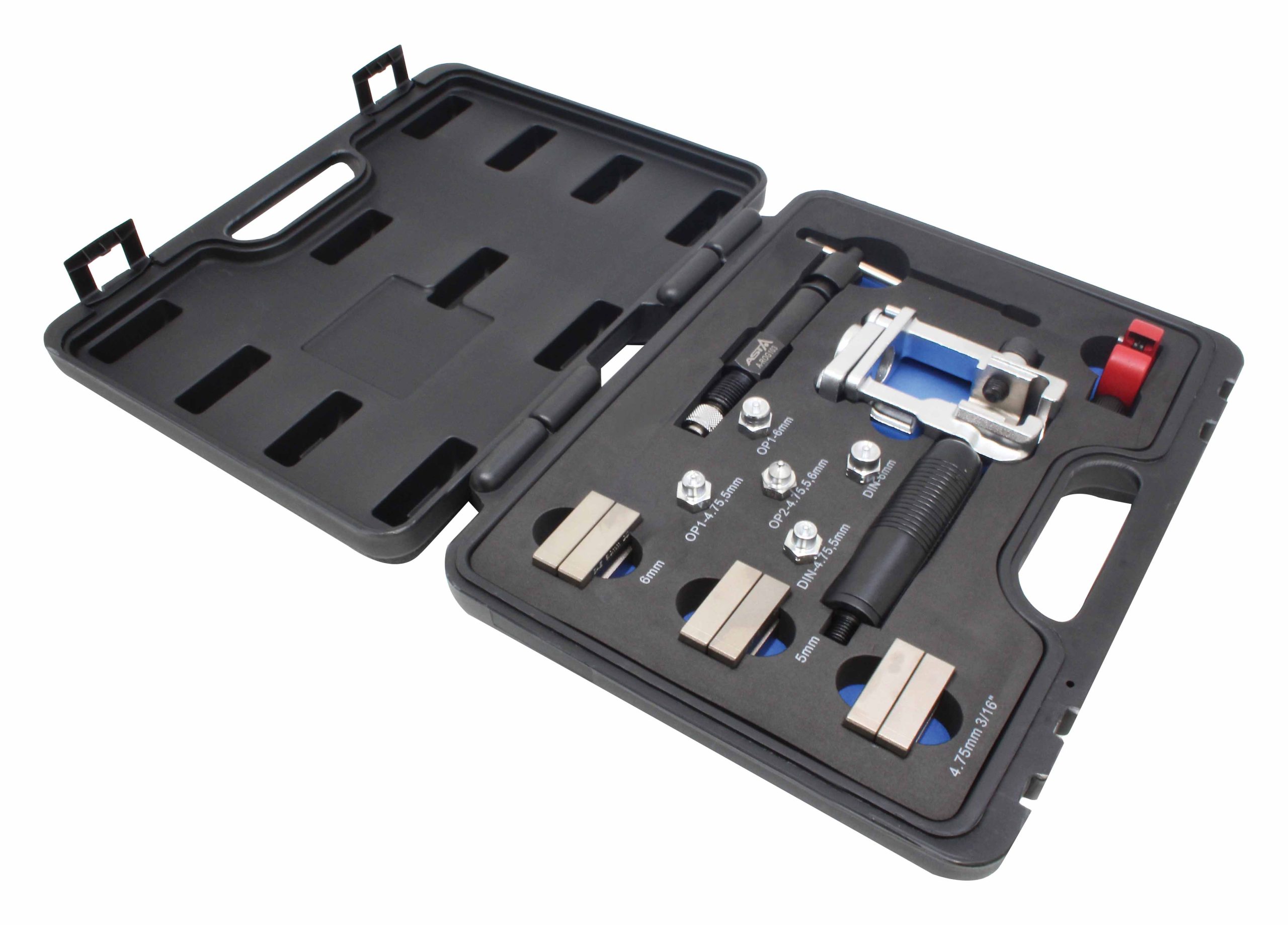

The complete kit is supplied in a durable blow-moulded plastic storage case with organized compartments for all components and an instruction manual.

Manufactured from high-quality materials, this tool is designed to provide exceptional durability, precision, and reliability under intensive professional workshop use.
