A-QCC15

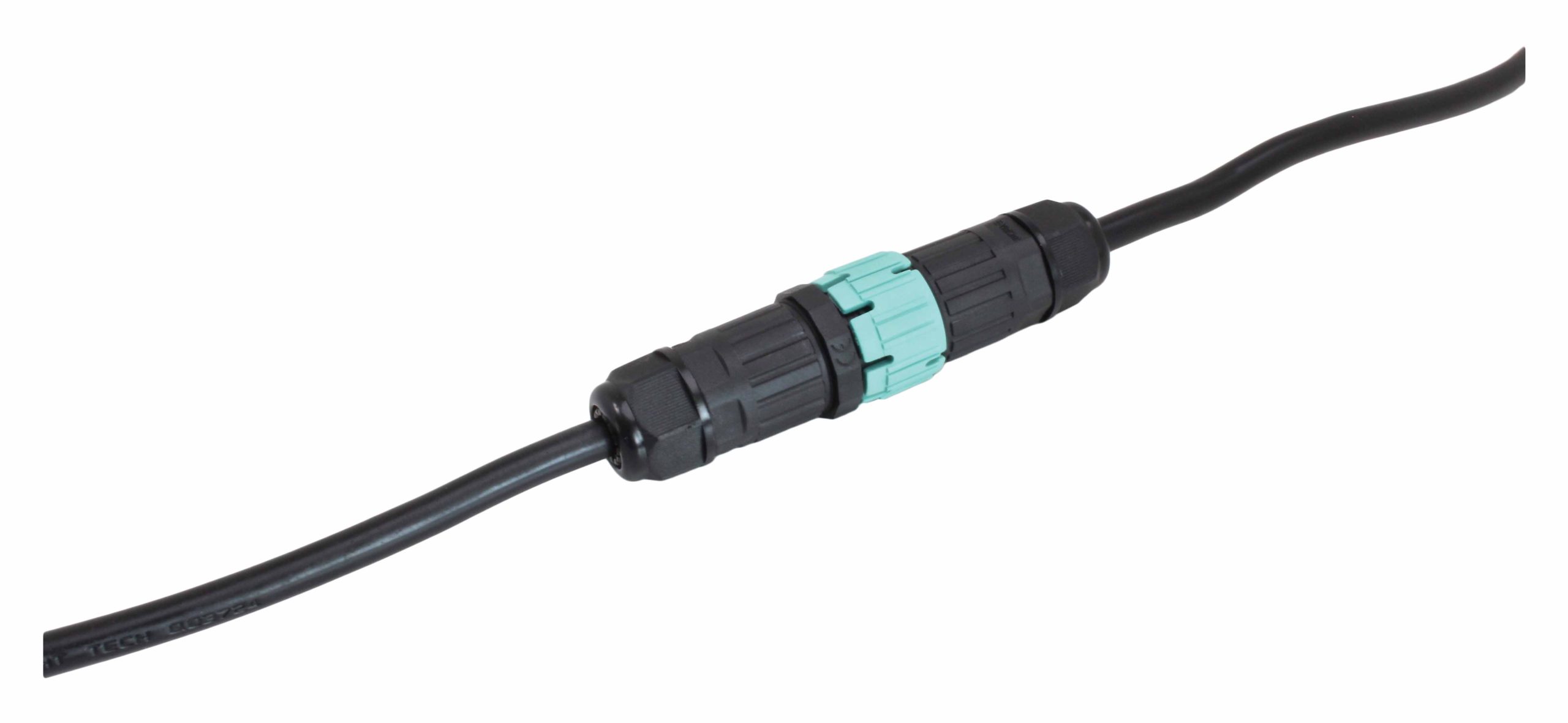

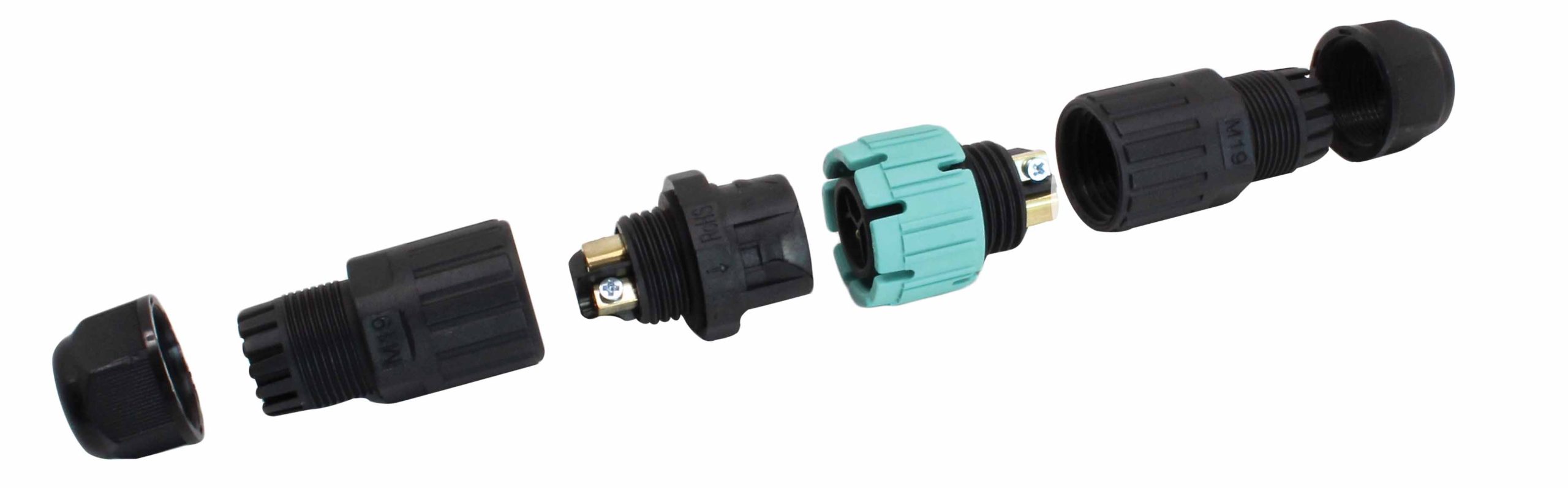

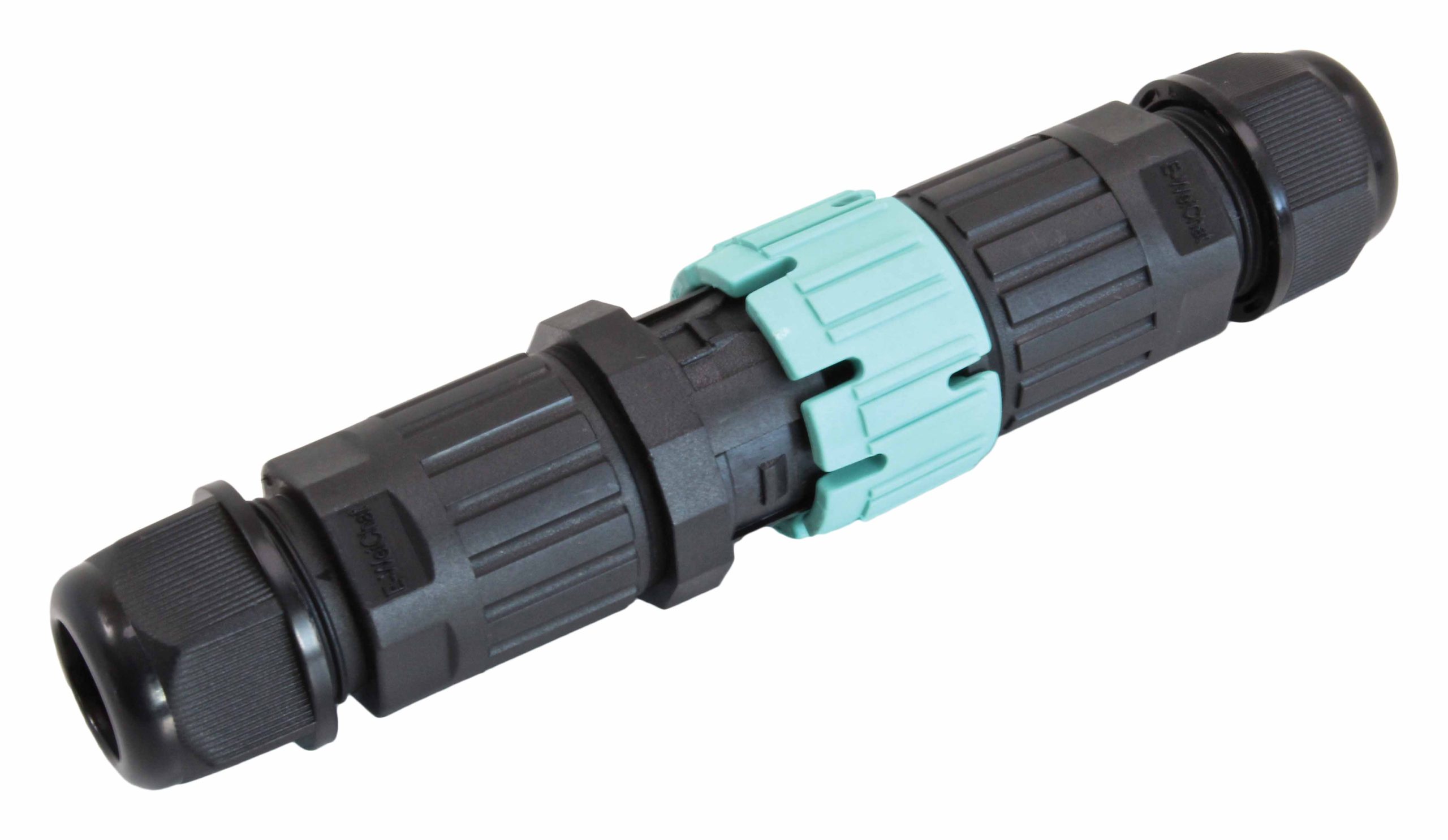

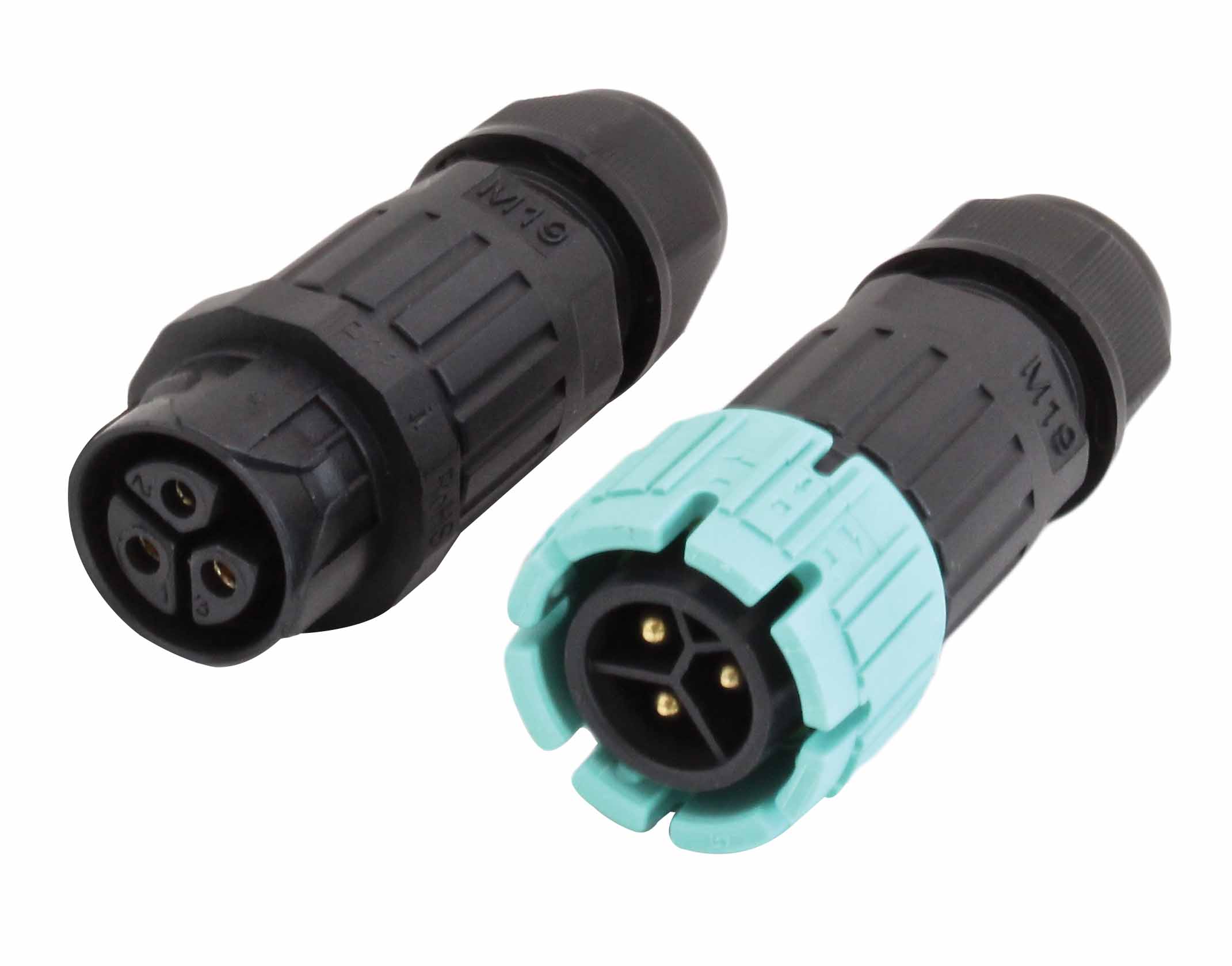

CABLE CONNECTOR 0.5mm² – 1.5mm² , IP68
The hermetic waterproof connector enables the connection of electric wires in the range of 0.5mm² – 1.5mm².
Simple use ensures time savings and a solid connection ensuring protection against moisture.
It has a security in the form of a lock that prevents spontaneous disconnection.
• 3-pin
• Protection class: IP68
• Wires range: 0.5mm² – 1.5mm²
• Wires thickness: 7-10mm
• Ampere max: 400V / 17.5A
• Temperature range: -40°C – +105°C
• Diameter: 21mm
• Length: 77mm
• Weight: 0,027 kg
