A-BMWM5246

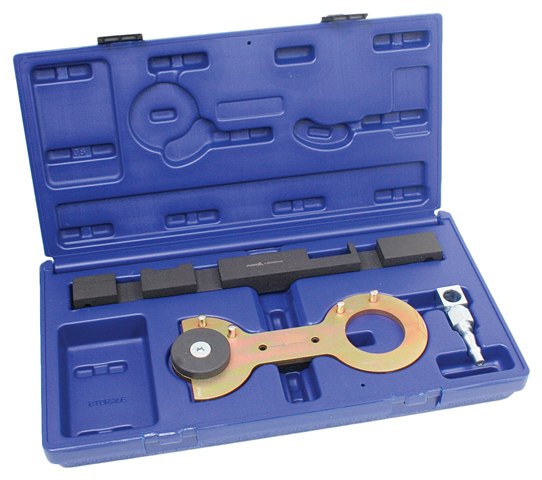

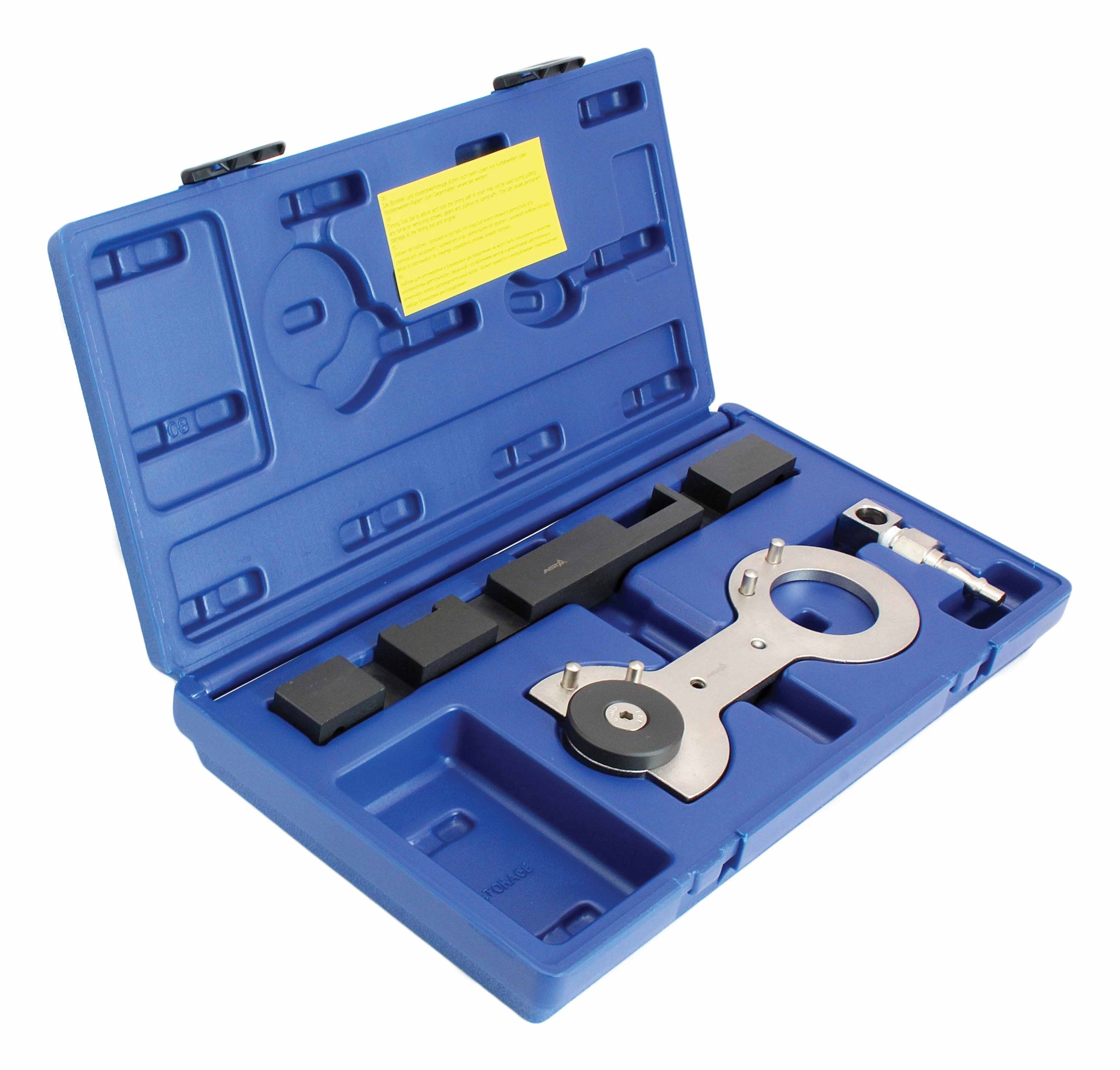

BMW Locking Tool Set
Suitable for use on BMW M42, M44, M50 and M52 Twin Cam Engines. Essential for Timing Chain, Sprocket or Camshaft Removal.
Includes Setting / Locking Plate, Crankshaft TDC Pin And Secondary Chain Timing Tool.
ENGINE TYPES:
• BMW: Seria 3 – 318 1.8 iS/Coupe E30/E36 (non Vanos) (89-01), 320 2.0 E36 24v (91-97),320 2.0 E46 (98-01) 22 6S 1,320 2.2 E46 (00-07), 323 2.3 E36 (95-01), 325 2.5 E36 24v (91-97), 325 2.5 E46 (00-07) 25 6S 5, 330 3.0 E46 (00-07) 306S M54, 30
• Seria 5 – 520 2.0 E34 24v (89-96), 520 2.0 E39 (95-01), 520 2.2 E39 (00-03) 226S1, 520 2.2 E60/61 (03-05) 226S5, 523 2.3 E39 (95-00), 523 2.5 (98-01) 256S4 , 525 2.5 E36 24v (89-96), 525 2.5 E60/61 (03-05) 256S5, 528 2.8 E39 (95-00), 528 2.8 (98-01) 286S2 M52, 530 3.0 E39 (00-03) 306S3, 530 3.0 E60/61 (03-05)
306S3
• Seria 7 – 728 2.8 E38/E65/E66 (98-02) 286S2, 730 3.0 E65/E66 (02-05) 306S3, X3 – 2.5 E83 (03-07) 256S5, X3 3.9 E83 (03-07) 306S3
,
• X5 – 3.0 E53 (99-07) 306S2 M54, 30
• Z3 – 2.0 (99-03) 206S4 M52, Z3 2.8 (99-03) 306S2 M52, Z3 2.2 (00-03) 226S1 M54, Z3 3.0 (00-03) 306S3 M54,
ENGINES:
• M42, M44, M50, M52TU, M54, M56, 206S4 M52, 226S1, 226S1 M54, 256S4 M52, 256S5, 286S2, 286S2 M 52, 306S3, 306S3 M54. 30
