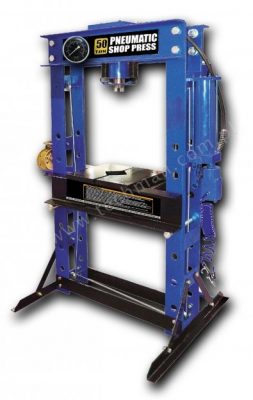

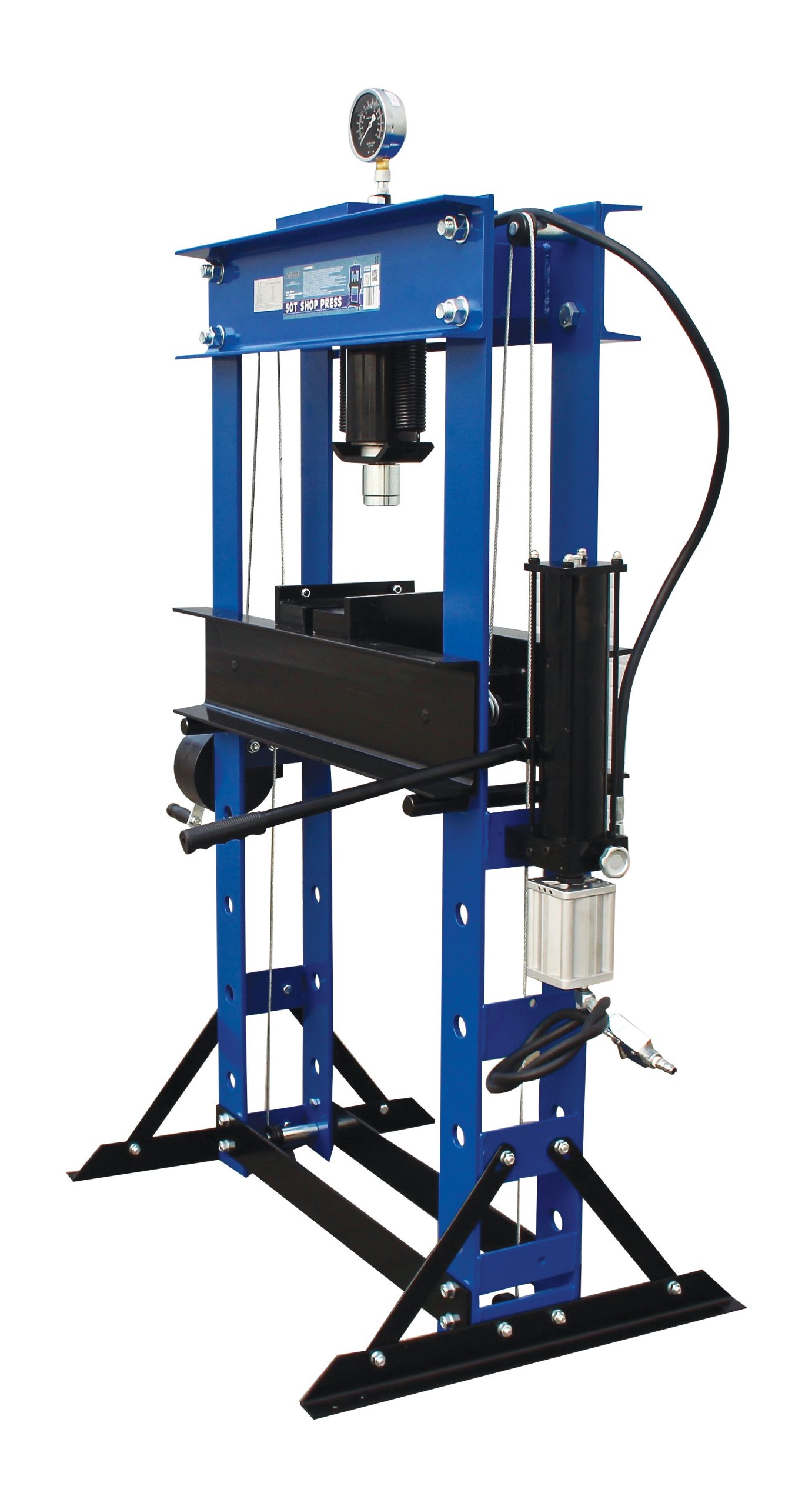

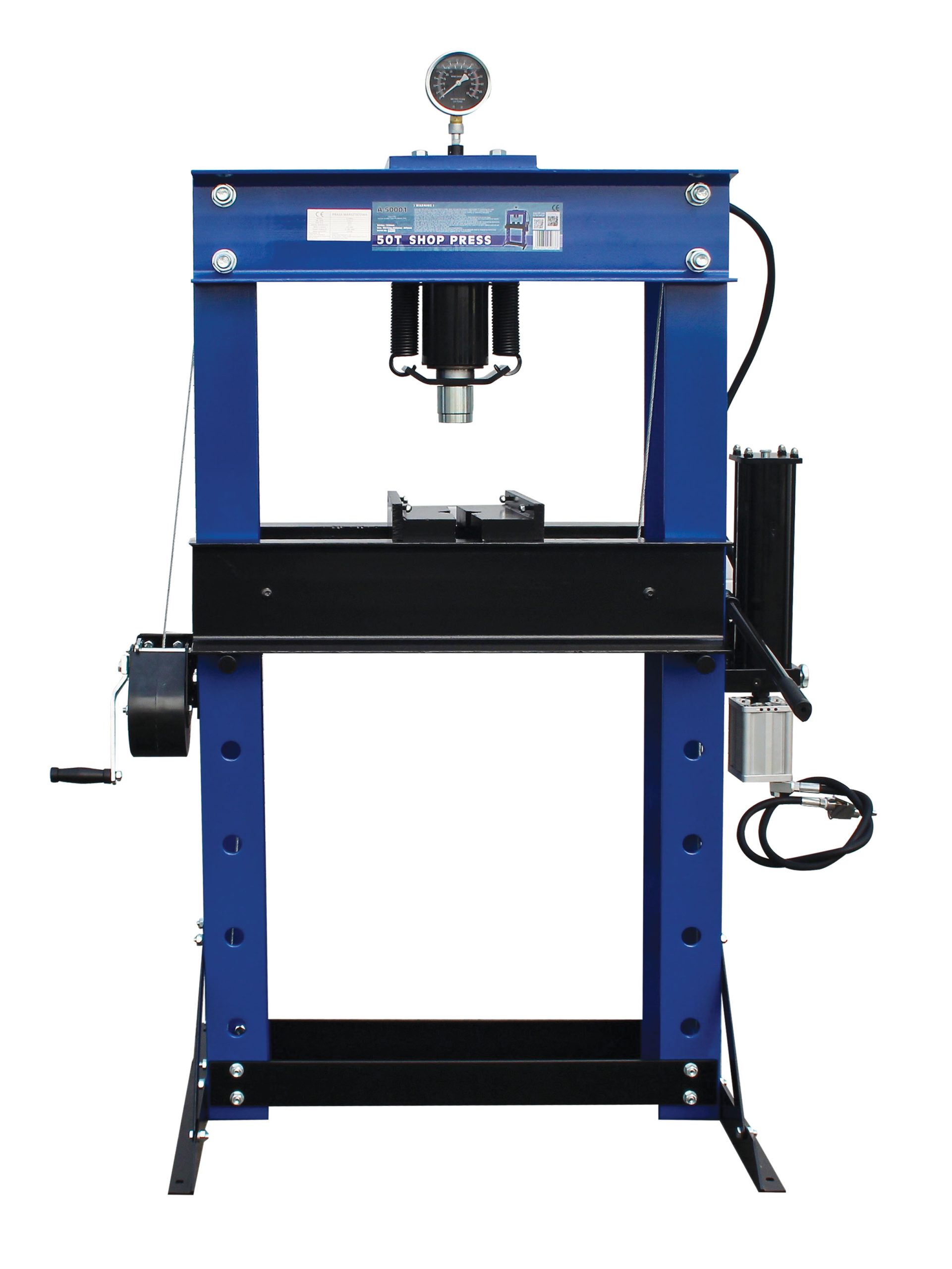

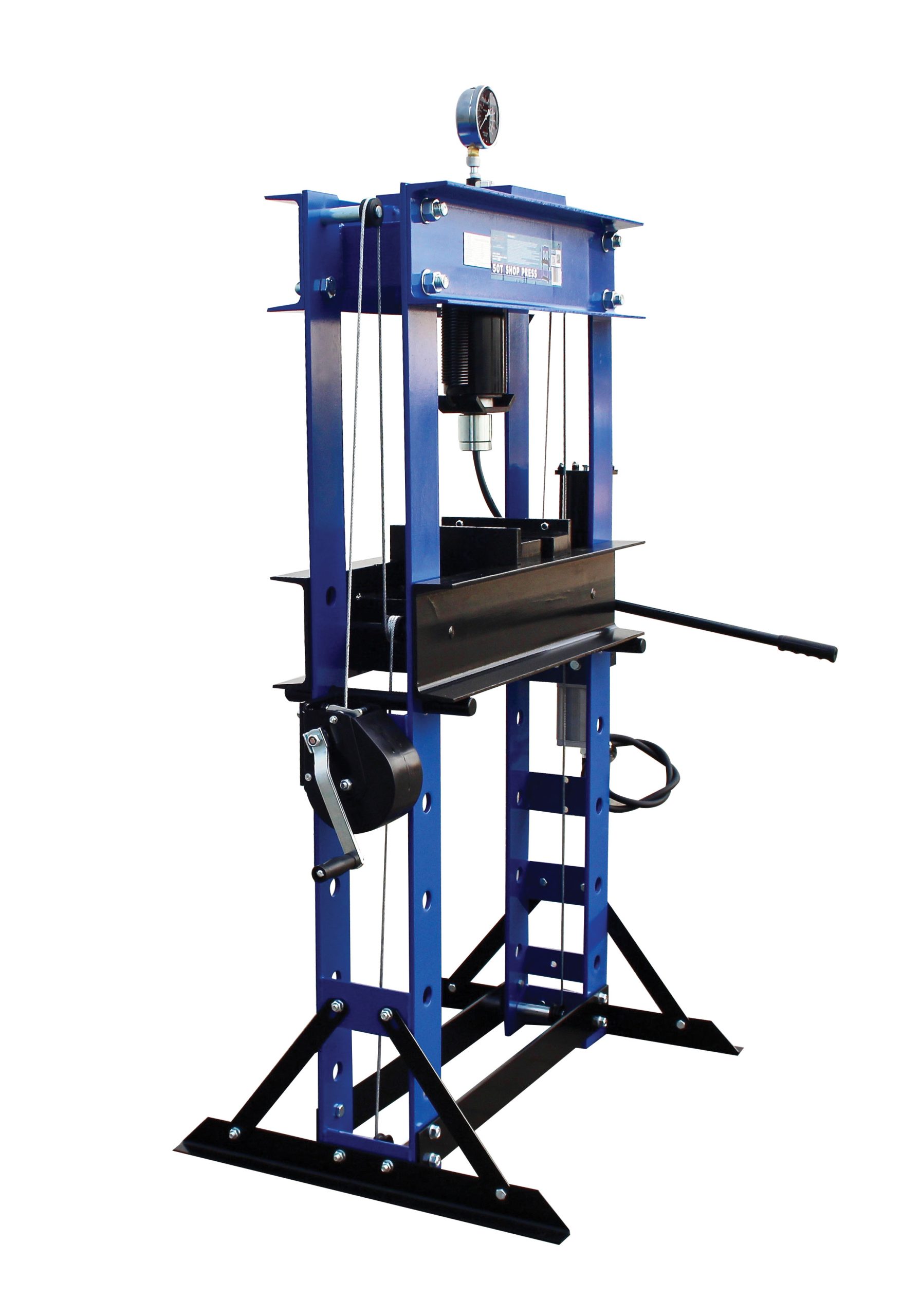

HYDRAULIC AND PNEUMATIC PRESS 50T



DETAILS:

•Stable, steel construction

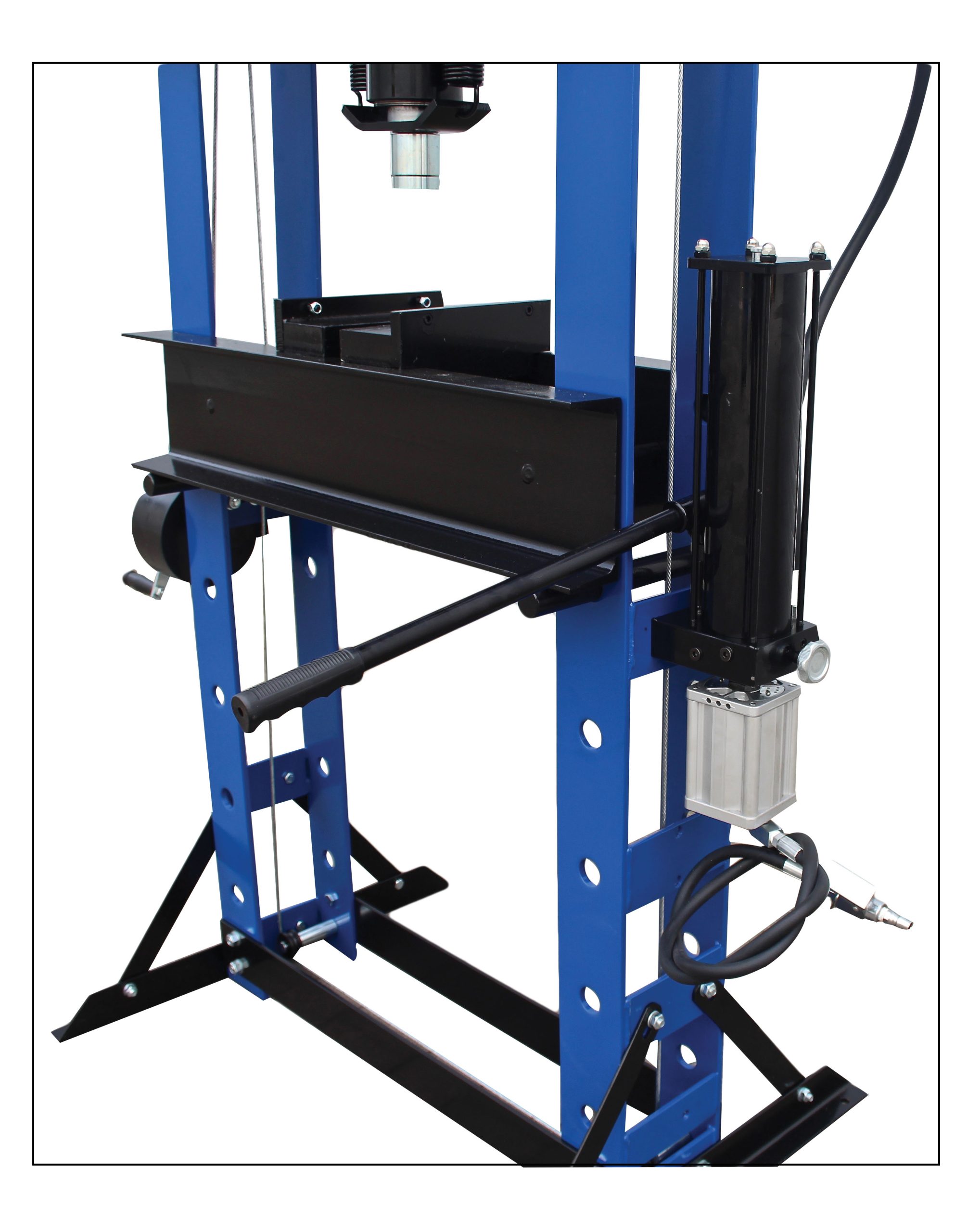

•Manual and pneumatic drive (possibility to press elements from distance)

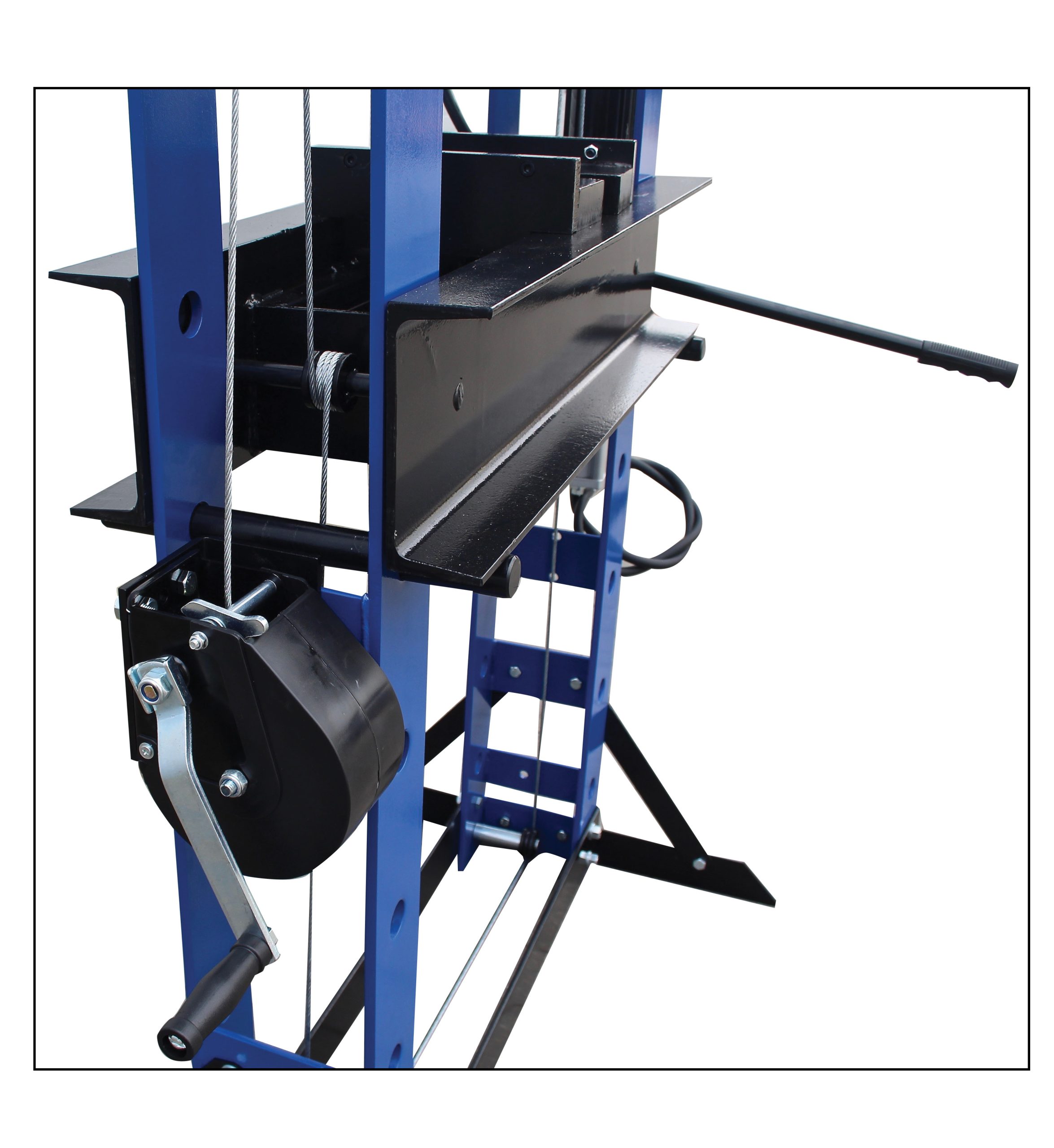

•Hand pump

•Hydraulic cylinder

•Adjustable working table height (7 levels)

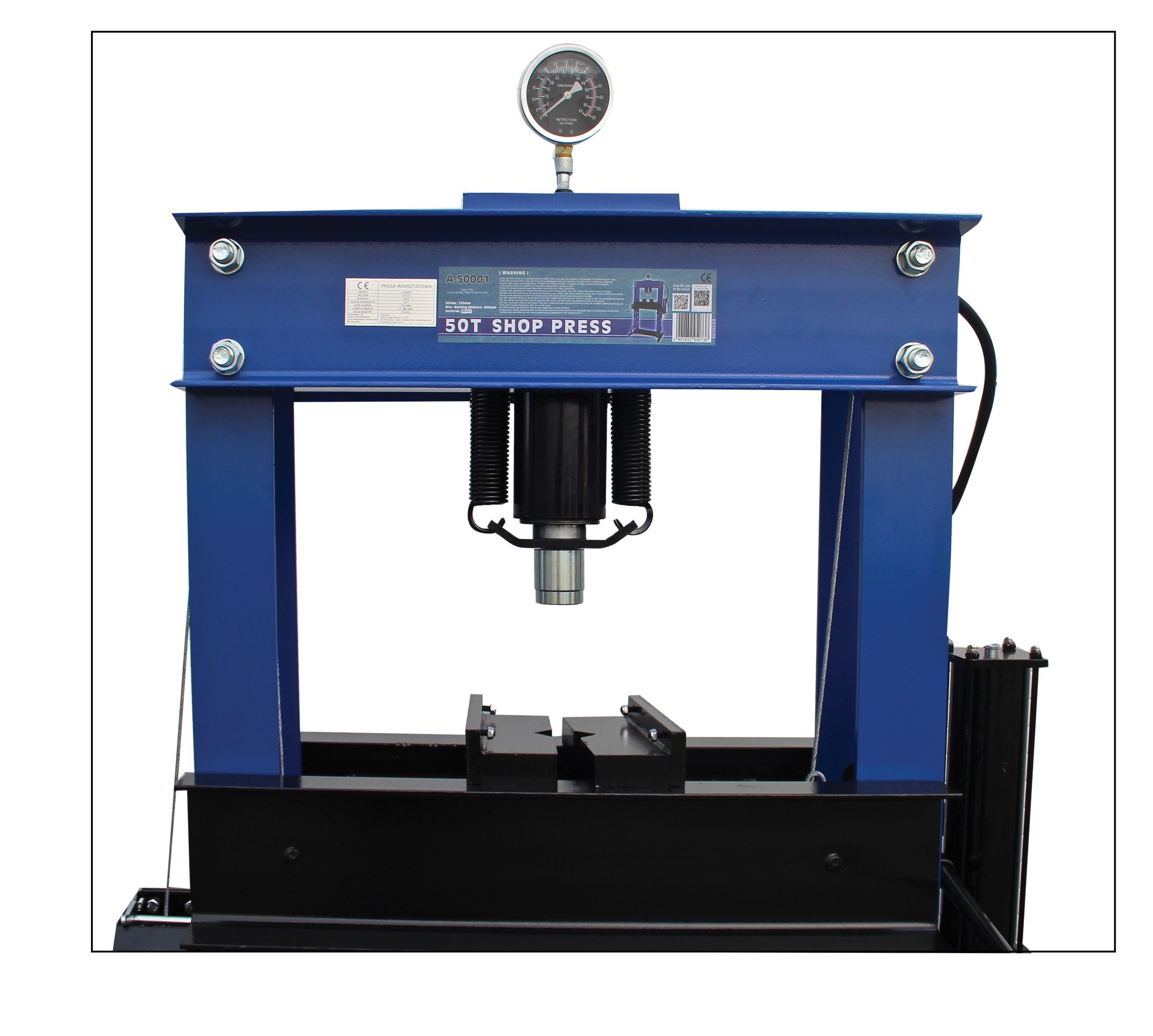

•Metal gauge with gliceryne (pic. A).

TECHNICAL DATA:

•Capacity: 50 T

•Working Range 60-900 mm. width of the moving base:840mm

•Working pressure: 120Ps

•Max working pressure: 142 Psi

•Working stroke: 175mm

•Weight: 276 kg brutto / 243 kg netto.
